6 products found

Engineered Materials Solutions, Inc. (EMS) Products

• Clad Metal

•

  EMS - Overlay Clad Metal

  Overlay cladding creates products with multiple performance advantages. Many applications require material properties that cannot be found in a mono-metal. Cladding of multiple metals together into one laminated strip can provide the desired properties unique to a specific application. Clad metals often use one material on the ...

• TRUFLEX - Thermostatic Bimetal

  Thermostatic Bimetals are one of the most widely applied families of clad metals. But, what is Thermostatic Bimetal? In its basic form, Thermostatic Bimetal is comprised of two metals with different coefficients of thermal expansion (CTE) that are bonded together. It is this difference in CTE of the component metals that give Thermostatic Bimetals their unique property of bending or curving as a result of an exposure to change in temperature. The amount in curvature the Thermostatic Bimetal experiences is proportional to the temperature change. It is also predictable and it is repeatable. It is these unique properties that make Thermostatic Bimetal useful in any application where it is desirable to sense and react as a function of temperature.

•

  Discgrade Thermostatic Bimetal

  Snap Disc Thermostatic Bimetal is typically a very thin material (t < 0.3mm) that is formed into a concave element. The element is heated either by changes in ambient temperature or through internal resistive heating in current carrying applications. As the temperature of the metal increases so does the stress level within the Bimetal element. Internal stresses increase with temperature until – “SNAP” – the concave element ...

•

  Electrical Grade Thermostatic Bimetal

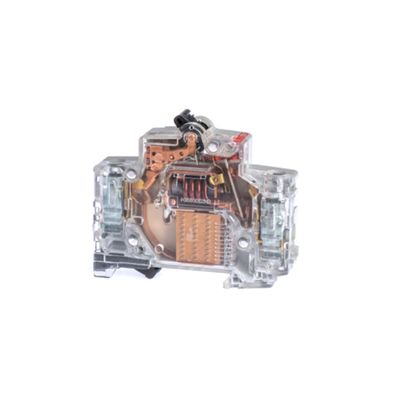

  Electrical Grade: Electrical Grade Thermostatic Bimetal is widely used in Circuit Breakers, Appliances, Automobiles, and other applications where there is a need to sense and react to temperature changes. Electrical Grade Bimetal is typically thicker (T > 0.3mm) and moves linearly as a function of a rise in temperature. It is also often a current carrying element in an end application. Whether it is protecting your home’s electrical circuits, ...

• Nickel & Nickel Alloys

•

  EMS - Model 200/201/233 - Nickel

  Typical Characteristics: High thermal conductivity, High ductility, Low carbon content, Good ...

• Other Products

•

  Model CI-1036 - Silver Conductive Ink

  CI-1036 is silver conductive ink designed for superior durability and crease resistance along with low resistance and long screen residence time. The main uses of CI-1036 are for switches that are subject to deformation e.g. poly-doming or intentional creasing or flexing e.g. tail fold-over. CI-1036 shows excellent adhesion to print treated ...

• Membrane Switches - Silver Circuit Traces

•

  Model CI-1001 - Silver Circuit Traces Switches

  Silver-vinyl ink, highly conductive, ...
