19 products found
HRS Heat Exchangers Ltd. Products
-
Heat Exchangers - Double Tube Heat Exchangers
Double tube heat exchangers are designed whereby one tube is concentrically positioned within a larger tube. The double tube composition allows for unrestricted flow of product, making it the ideal heat exchanger for viscous products. The product flows through the inner tube and the service fluid flows through the surrounding shell. HRS offers three types of double tube heat exchangers for a variety of applications: Hygienic Double Tube Heat Exchangers – HRS DTA Series. Industrial Double Tube Heat Exchangers – HRS DTI Series. Industrial Double Tube Heat Exchangers with Removable Tube – HRS DTR Series.
-
HRS - Model DTA Series - Hygienic Double Tube Heat Exchangers
The HRS DTA Series is a complete stainless steel double tube heat exchanger designed for hygienic applications. The product flows through the inner tubes and the service fluid flows through the surrounding shell. Because of its geometry, the DTA Series is a true counter current heat exchanger. Using our corrugation technology, both heat transfer and efficiency are increased over standard smooth tube heat exchangers. In addition, potential fouling is ...
-
HRS - Model DTI Series - Industrial Double Tube Heat Exchanger
The HRS DTI Series is a complete stainless steel double tube heat exchanger designed for industrial applications. Because of its geometry the DTI Series is a true counter current heat exchanger; the product flows through the inner tube and the service fluid flows through the surrounding shell. Using our corrugation technology, both heat transfer and efficiency are increased over standard smooth tube heat exchangers. In addition, potential fouling is ...
-
HRS - Model DTR Series - Industrial Double Tube Heat Exchangers With Removable Tube
Based on the DTI Series, but with an adapted design for direct energy recovery (product vs product) for sludge with low viscosity. The inner tube is removable making it possible to inspect/clean both tube and shell side. It also allows for easier and faster cleaning consequently reducing operational downtime required for these high fouling products. The tube in tube concentric geometry makes it easy to work with fluids that contain particles, without ...
-
Heat Exchangers - Multitube Heat Exchangers
As the name suggests, a multitube heat exchanger uses more than one tube to carry the product. The product flows through the interior tubes and the service fluid flows through the surrounding shell. HRS produces a range of different multi tube heat exchangers for use in a wide range of different industries and applications.
-
HRS - Model C Series - Industrial Multitube Heat Exchanger
The HRS C Series is a complete stainless steel shell and tube heat exchanger designed for industrial use, based on our K Series but with smaller tubes making the unit more compact. The product flows through the inner tubes and the service fluid flows through the surrounding shell. The HRS C Series is an ideal heat exchanger for steam-to-water applications such as CIP heating and low viscosity products. Using HRS corrugation technology, heat transfer and ...
-
HRS - Model G Series - Gas Cooling Heat Exchanger
The HRS G Series is a complete stainless steel multitube heat exchanger designed specifically for exhaust gas cooling and thermal recovery applications. Similar to the HRS K Series, the exhaust gases flow through the interior tubes and the service fluid flows through the surrounding shell. Using our corrugation technology, heat ...
-

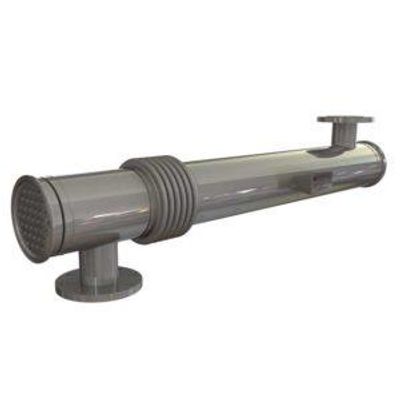

HRS - Model K Series - Industrial Multitube Heat Exchanger
The HRS K Series is a complete stainless steel shell and tube heat exchanger designed for industrial use. The product flows through the interior tubes and the service fluid flows through the surrounding shell. The K Series is an ideal heat exchanger for steam-to-water applications such as CIP heating. Using HRS corrugation technology, heat transfer and efficiency are increased over standard smooth tube heat exchangers. In addition, effects of fouling are ...
-
HRS - Model MI Series - Hygienic Multitube Heat Exchanger
The HRS MI Series is complete stainless steel shell and tube heat exchanger designed for hygienic applications. The product flows through the interior tubes and the service fluid flows through the surrounding shell. The MI Series is an ideal heat exchanger for pasteurisation applications. Using HRS corrugation technology, both heat transfer and efficiency are increased over standard smooth tube heat exchangers. In addition, potential fouling is ...
-
HRS - Model MR Series - Hygienic Multitube Heat Exchangers With Removable Tubes
The HRS MR Series is a complete stainless steel shell and tube heat exchanger designed for hygienic applications. The product flows through both the inner tube and the surrounding shell for regeneration duties. The removable tubes allow hygienic processing on the shell side. The MR Series is an ideal heat exchanger for direct product-to-product heat recovery. Using HRS corrugation technology, heat transfer and efficiency are increased over standard smooth ...
-
HRS - Model MP Series - Multipass Multitube Heat Exchanger
The HRS MP Series is a complete stainless steel multitube heat exchanger, its design is ideal for hygienic and industrial applications. Using multiple passes on the tube side offers greater flexibility for optimising fluid velocity, pressure drop and heat transfer. The unique design creates longer thermal length within the same module, avoiding designs with multiple modules and interconnecting bends. Using HRS corrugation technology, both heat transfer ...
-
HRS - Model SH Series - Double Tubeplate Hygienic Heat Exchangers
The HRS SH Series is a multitube shell and tube heat exchanger designed with the added security of a double tubeplate, providing leak detection to avoid cross contamination between the service and product fluids. The HRS SH series is perfect for hygienic applications. Using our corrugation technology, heat transfer and efficiency are increased over standard smooth tube heat exchangers. In addition, potential fouling is ...
-
HRS - Model SI Series - Double Tubeplate Industrial Heat Exchangers
The HRS SI Series is a multitube shell and tube heat exchanger designed with the added security of a double tubeplate, providing leak detection to avoid cross contamination between the service and product fluids. The HRS SI series is perfect for industrial applications. Using our corrugation technology, heat transfer and efficiency are increased over standard smooth tube heat exchangers. In addition, potential fouling is ...
-
HRS - Model SP Series - Double Tubeplate Pharmaceutical Heat Exchangers
The HRS SP Series is a multitube shell and tube heat exchanger designed with the added security of a double tubeplate, providing leak detection to avoid cross contamination between the service and product fluids. The HRS SP series is perfect for pharmaceutical applications. Using our corrugation technology, heat transfer and efficiency are increased over standard smooth tube heat exchangers. In addition, potential fouling is ...
-
Heat Exchangers Annular Space - HRS AS Series
The HRS AS Series is a fully stainless steel heat exchanger consisting of three or four concentric tubes. The product flows through the annular space and the service fluid flows through the inner and outer tubes to ensure even heating and cooling. The removable inner tube allows for easy inspection of the annular space. Using HRS’ corrugated tubes technology, both heat transfer and efficiency are increased over standard smooth tube heat exchangers. In addition, potential fouling is minimised. An expansion bellow is fitted to absorb the differential expansion between the shell and annular space. For larger installations, multiple units can be interconnected and have the option of frame mounting, which can be insulated and cladded in stainless steel.
-
HRS - Model AS 3 Series - Annular Space Heat Exchangers
The HRS AS 3 Series is a fully stainless steel, triple tube heat exchanger designed for applications with viscous products. The product flows through the annular space and the service fluid flows through the inner and outer tubes to ensure even heating or cooling. The removable inner tube allows for easy inspection of the annular space. Using HRS’ corrugated tube technology, both heat transfer and efficiency are increased over standard smooth tube ...
-
HRS - Model AS 4 Series - Annular Space Heat Exchangers
The HRS AS 4 Series is a complete stainless steel quadruple tube heat exchanger designed for applications with viscous fluids. The product flows through the annular space and the service fluid flows through the service tubes to ensure even heating or cooling. The removable inner tube allows for easy inspection of annular space. Using HRS’ corrugation technology, heat transfer and efficiency are increased over standard smooth tube heat exchangers. In ...
-
Heat Exchangers - Scraped Surface Heat Exchanger
HRS Heat Exchangers designs and manufactures scraped surface heat exchangers for applications where either one or both of the following problems require special solutions: fouling causes heat transfer rates to drop and viscous fluids having very low heat transfer rates.
-
HRS - Model Unicus Series - Reciprocating Scraped Surface Heat Exchanger
The patented HRS Unicus Series is a scraped surface heat exchanger specially designed and developed to offer a solution for those difficult heat transfer applications where very viscous fluids are used or fouling appears. The design is based on a traditional shell and tube heat exchanger with scraping elements inside each tube. The reciprocating movement of the scrapers mix the fluid whilst cleaning the heat exchange surface. This keeps heat transfer high ...
-
Heat Exchangers - Plate Heat Exchangers
HRS plate heat exchangers are ideal for applications where the fluids have relatively low viscosity with no particles. They are also an ideal choice where product outlet temperature is close to the service inlet temperature. Plate heat exchangers consist of thin, corrugated plates packed inside a frame, with the product in alternate channels, and service fluid in between product channels. The compactly designed HRS plate heat exchangers range consists of a number of herringbone patterned, pressed heat transfer plates. These are assembled in an inverse formation to create two sets of parallel channels, one for each liquid. Since the herringbone patterns point in opposite directions, a large number of points of support are achieved, creating a lattice in each channel. This provides a high level of turbulence, which in turn leads to an elevated rate of heat transfer.
-

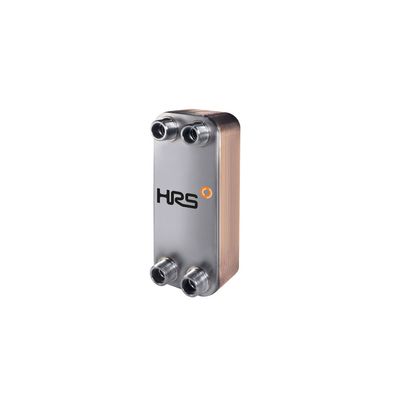

HRS - Brazed Plate Heat Exchanger
The HRS Brazed Plate Heat Exchanger range works on the same principle as conventional plate heat exchangers, but consists of a pack of corrugated plates joined together and sealed by furnace brazing. Typically the units are copper brazed, however for applications where the medium is aggressive to copper, or for where temperatures range from 225°C to 400°C, then nickel is used. The plates are manufactured as standard from high-grade AISI 316 acid ...
-

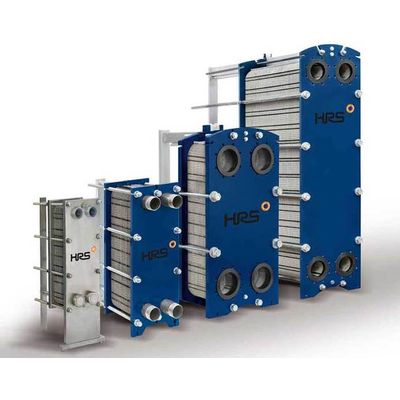

HRS - Gasketed Plate Heat Exchanger
HRS Gasketed Plate Heat Exchangers are manufactured as standard from either AISI 304/316 stainless steel or titanium to a thickness of 0.6mm, although plate thickness options of 0.8mm or 1.0mm are also available if required. The exchangers are fitted with EPDM or NBR gaskets with the frames constructed from painted carbon steel. A double seal arrangement around the two ports ensures that if fluid leaks, it passes through the inter-space directly to the ...
-
Systems - Environmental System
HRS Heat Exchangers have developed complete processing solutions built around our heat transfer technologies. Each processing plant is designed specifically to meet the client’s specific requirements and all of our turnkey installations can be supplied worldwide.
-
HRS - Model BDS Series - Biogas Dehumidification System
The HRS Biogas Dehumidification System (BDS) removes water from biogas, protecting combined heat and power (CHP) engines from corrosion and cavitation. It can be supplied with a heat recovery section, increasing the overall efficiency of anaerobic digestion (AD) ...
-

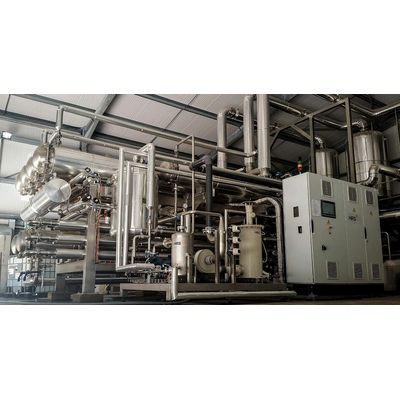

HRS - Model DCS - Concentration of Environmental Waste for Renewable Energy
The HRS Digestate Concentration System (DCS) reduces the volume of digestate from anaerobic digestion while increasing its value. In most situations, it is able to do this using surplus heat from the CHP engine or biogas boiler, which can be used up to four times by incorporating multi-effect evaporation ...
