Quantron AG

Quantron AG
Koblenzer Str. 2, ,
Gersthofen ,
86368
Germany
  2. Companies
  3. Quantron AG
  4. Products

4 products found

Quantron AG Products

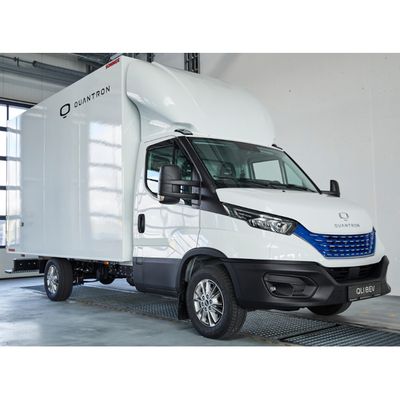

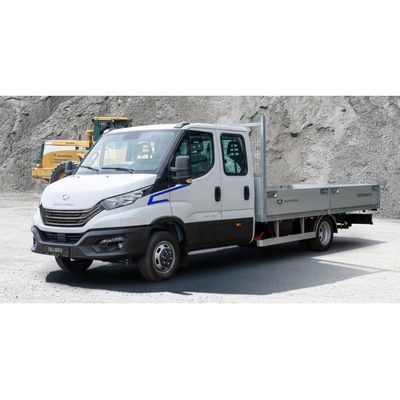

  • Q-Light - QLI BEV

    The QLI BEV models are locally emission-free and quiet on the road, making them ideal for use at the edges of the day and at night. A benefit for residents and employees. Unlike classic combustion engines, they are ideal for stop-and-go use.

  • Model QLI BEV 3-37 - Q-Light vehicles

    Model QLI BEV 3-37 - Q-Light vehicles

    Max. motor power: 100 kW. Tested range / max. range: 90 / 100 km. Battery capacity: 37 kWh. Charging time (AC / DC): 6 h / ~ 1 h. Charging power (AC / DC): 6,6 / 50 kW. Payload chassis: 1580 kg. Wheelbase min. – max.: 3000 – 3750 mm. Gross vehicle weight: 3500 kg. Base vehicle: Iveco Daily. Availability: available ...

  • Model QLI BEV 3-75 / 4-75 / 5-75 - Q-Light vehicles

    Model QLI BEV 3-75 / 4-75 / 5-75 - Q-Light vehicles

    Max. motor power: 100 kW. Tested range / max. range: 180 / 210 km. Battery capacity: 75 kWh. Charging time (AC / DC): 6 h / ~ 1 h. Charging power (AC / DC): 13 / 70 kW. Payload chassis: 1300 – 2745 kg. Wheelbase min. – max.: 3750 – 4750 mm. Gross vehicle weight: 3500 kg / 4200 kg / 5200 kg. Base vehicle: Iveco Daily. Availability: available ...

  • Q-Heavy - QHM FCEV

    The hydrogen-electric QUANTRON QHM sets standards for heavy long-distance transport: the integration of all components within the frame structure (without compromising on dimensions and application of the ISO directive for semitrailer combinations) and this with the special feature that long-distance cabins are also possible. The hydrogen tanks are fully integrated in the chassis. In addition, H2 consumption is optimized by a specially developed intelligent Q-ENERGY management system. This realizes maximum efficiency in the interaction between e-axle, fuel cell, high-voltage battery and 24V as well as HV auxiliary consumers.

  • Model 44-1000 - Heavy E-Trucks

    Model 44-1000 - Heavy E-Trucks

    Max. e-axle power cont. / peak: 420 / 550 kW. Range simulated: 700 km. Fuel cell power: 120 / 240 kW. Battery capacity: 124 kWh. H2-capacity: 54 kg. Filling time: <20 min. Tank pressure: 700 bar. Min. wheelbase: 3900 mm. Base truck: MAN TGX and TGS. Availability: available to order ...

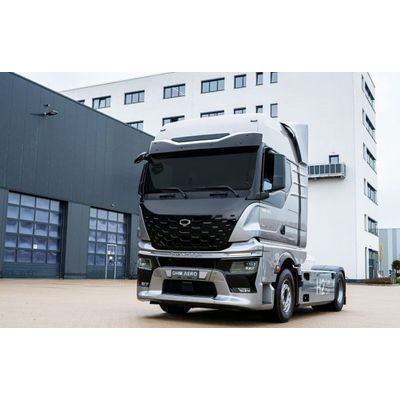

  • Model AERO 44-1000 - Heavy E-Trucks

    Model AERO 44-1000 - Heavy E-Trucks

    Max. e-axle power cont. / peak: 420 / 550 kW. Range simulated: >700 km. Fuel cell power: 240 kW. Battery capacity: 124 kWh. H2-capacity: 54 kg. Filling time: <20 min. Tank pressure: 700 bar. Min. wheelbase: 3900 mm. Base truck: MAN TGX with GX cabin. Availability: available to order ...
