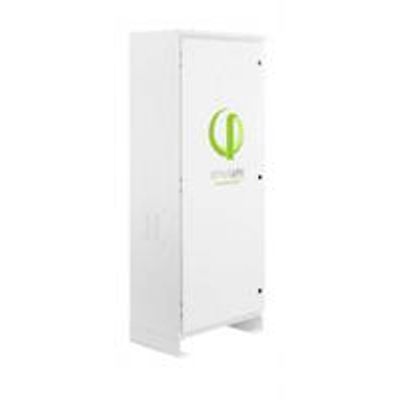

AccESS- Outback - Fully Integrated Energy Storage Unit
From Fully-Integrated Solutions
SimpliPhi your power with AccESS to a fully integrated energy storage and management solution
Description
- AccESS power security with safe, reliable, non-hazardous and efficient energy source
- AccESS any power generation source with intelligent management
- AccESS your own power when and where you need it – inside or outside your home or business
SimpliPhi Power designs and manufactures efficient, non-toxic and enduring energy storage and management systems that utilize lithium ferro phosphate (LFP). Based in California, SimpliPhi combines non-hazardous LFP chemistry with its proprietary cell and battery architecture, power electronics, battery management system (BMS) and assembly methods to create safe, reliable, durable and highly scalable on-demand power solutions. Available for the residential, commercial, military and emergency response markets, SimpliPhi Power storage solutions have been rigorously tested and passed operational performance requirements by the U.S. Army and Marine Corp. Integral to all SimpliPhi Power solutions is a proprietary management system that further optimizes the life-cycle, round-trip efficiency rate, performance and durability of its batteries. SimpliPhi Power storage system components are UL certified and the PHI 3.5 kWh 24V and 48V 60 Amp batteries are ETL Certified, UL 1973 Standard.
Applications
- SIA (Standard Interconnection Agreement) customers: ESS allows for solar PV power to be self-consumed, curtailing PV production to prevent the export of power to the grid. Compatible with both string inverters and micro-inverters.
- NEM (Net Energy Metering) customers: add standby power and peak-shaving to a new or existing net-metered solar array
- Off-grid customers: ESS with 4.8 kW Solar MPPT combines power generation and energy management in a single package
Features
STANDARD FEATURES
- Pre-programmed ESS for backup power, peak-shaving, and self-consumption of solar PV
- Internal transfer switch automatically disconnects from the grid during power outages and provides standby power for critical circuits
- Outdoor rated enclosure can be free-standing, or pad-mounted
- Advanced LFP batteries with a 10,000 cycle / 10-year warranty
- 98% round trip efficiency
- Remote monitoring by web browser or mobile device app
- No thermal regulation, cooling, or risk of fire
OPTIONAL FEATURES
- Solar MPPT for DC-coupled or off-grid installations
- Automatic Generator control for additional standby power
- Wireless gateway for cell modem or WiFi connection

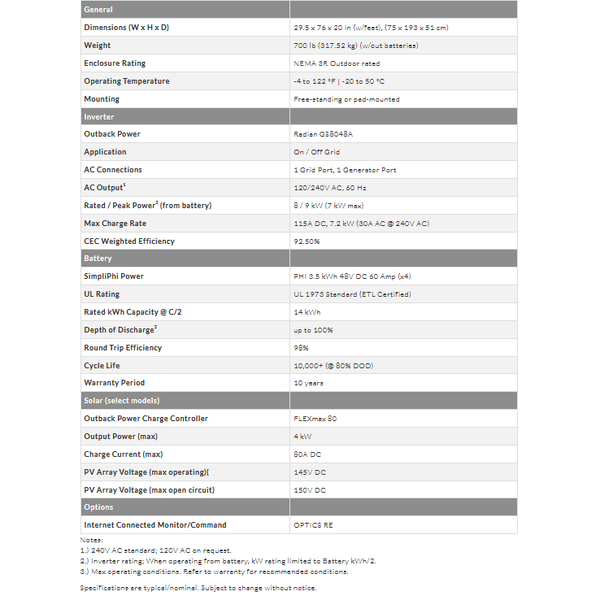

Additional Information
DIMENSIONS (W x H x D): 29.5 x 76 x 20 in (w/feet), (75 x 193 x 51 cm)
WEIGHT: 700 lb (317.52 kg) (w/out batteries)
- UN3480, Lithium Ion batteries, 9, II
- UL and CE listed, UN/DOT and RoHS compliant components
- Designed and built in California, USA
