What are Shell and Tube Heat Exchangers?

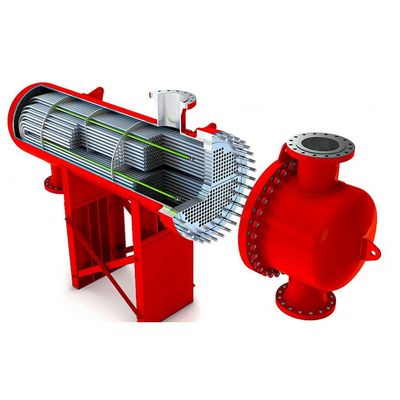

Shell and tube heat exchangers are versatile heat transfer devices widely used in various industries to efficiently exchange thermal energy between two fluids. They consist of a cylindrical shell housing a bundle of tubes through which one fluid flows, while the other fluid flows around the tubes within the shell.

Types of Shell and Tube Heat Exchangers

Shell and tube heat exchangers come in various configurations to cater to diverse industrial needs. Here are some of the common types offered by Aces Process:

1. U-Tube Heat Exchangers:

• Features: U-shaped tubes fixed to a single tubesheet, allowing for thermal expansion and contraction.

• Advantages: Simple design, lower cost, easy cleaning of the shell side.

• Limitations: Difficult to clean the tube side, limited to low-pressure applications.

• Suitable for: Applications with moderate temperature and pressure differences and where frequent cleaning of the tube side is not required.

2. Straight Tube Heat Exchangers:

• Features: Straight tubes fixed to two tubesheets at both ends.

• Advantages: Easy cleaning and maintenance of both shell and tube sides, suitable for high-pressure applications.

• Limitations: Requires expansion joints to accommodate thermal expansion, higher cost compared to U-tube exchangers.

• Suitable for: High-pressure and high-temperature applications, where frequent cleaning and maintenance are necessary.

3. Single-Pass, Double-Pass, and Multi-Pass Heat Exchangers:

• Features: Based on the number of times the tube-side fluid passes through the shell.

• Single-Pass: Tube-side fluid flows through the shell only once.

• Double-Pass: Tube-side fluid makes two passes through the shell.

• Multi-Pass: Tube-side fluid makes multiple passes through the shell.

• Advantages: Multi-pass configurations increase heat transfer efficiency.

• Suitable for: Applications requiring varying levels of heat transfer efficiency.

4. Cylindrical and Rectangular Shell Heat Exchangers:

• Features: Shell shape can be either cylindrical or rectangular.

• Cylindrical: More common, suitable for high-pressure applications.

• Rectangular: Offers a larger surface area for heat transfer in a compact space.

• Suitable for: Applications with specific space constraints or requiring a larger heat transfer surface area.

5. Material-Based Classification:

• Carbon Steel: Cost-effective and suitable for non-corrosive applications.

• Stainless Steel: Offers excellent corrosion resistance, suitable for a wide range of applications.

• Titanium: Highly resistant to corrosion, ideal for harsh environments and corrosive fluids.

• Other Materials: Depending on specific requirements, heat exchangers can be manufactured from other materials like copper, nickel alloys, or Hastelloy.

At Aces Process, we provide a comprehensive range of shell and tube heat exchangers tailored to your unique needs. Our team of experts can guide you in selecting the optimal type and configuration based on your application, process conditions, and budget. Contact us today to discuss your heat transfer requirements and find the perfect solution.

Shell and tube heat exchangers offer a range of benefits that make them a popular choice across various industries. Here are some of the key advantages:

1. Simple Design & Easy Maintenance

• Straightforward Construction: The basic structure of a shell and tube heat exchanger is relatively simple, consisting of a shell, tubes, and baffles, making them easy to understand and operate.

• Accessible for Cleaning and Inspection: Individual tubes can be easily removed for cleaning or replacement without affecting the entire unit, simplifying maintenance and minimizing downtime.

2. Robust & Durable Construction

• High-Pressure Capability: The robust shell design allows shell and tube heat exchangers to handle high pressures and temperatures, making them suitable for demanding applications.

• Resistant to Thermal Shock: The ability to withstand sudden temperature changes makes them reliable in processes involving fluctuating temperatures.

• Long Service Life: With proper maintenance, shell and tube heat exchangers can provide years of dependable service, minimizing replacement costs.

3. High Heat Transfer Efficiency

• Large Surface Area: The multiple tubes within the shell offer a large surface area for heat transfer, maximizing efficiency.

• Turbulent Flow: Baffles within the shell create turbulent flow, enhancing heat transfer coefficients and improving overall performance.

• Multiple Pass Configurations: Options for single, double, or multi-pass configurations further increase heat transfer efficiency by extending the fluid's path and contact time.

4. Wide Operating Range

• Temperature & Pressure Flexibility: Shell and tube heat exchangers can operate over a broad range of temperatures and pressures, making them adaptable to various process conditions.

• Suitable for Different Phases: They can handle both liquid and gas phases, expanding their applicability to a wider range of processes.

5. Versatility for Various Fluids

• Handles Diverse Fluids: They can accommodate various fluids, including corrosive, viscous, and fouling liquids, making them versatile for different industries and applications.

• Material Compatibility: They can be constructed from a variety of materials, such as carbon steel, stainless steel, titanium, and other alloys, to ensure compatibility with specific fluids and process conditions.

Additional Benefits:

• Scalability: They can be easily scaled up or down to meet varying capacity requirements.

• Cost-Effectiveness: Compared to some other heat exchanger types, they offer a cost-effective solution for many applications, especially those requiring high pressures and temperatures.

By offering a combination of simplicity, durability, efficiency, and versatility, shell and tube heat exchangers remain a preferred choice for a wide range of industrial heat transfer needs. At Aces Process, we leverage these advantages to design and manufacture custom heat exchangers that meet your unique requirements and optimize your process efficiency.

• Oil & Gas Industry: Cooling and heating fluids in refineries, petrochemical plants, and offshore platforms.

• Chemical Processing: Heat transfer in various chemical reactions, distillation, and condensation processes.

• Power Generation: Steam generation and condensation in power plants.

• HVAC Systems: Heating and cooling air and water in commercial and industrial buildings.

• Food & Beverage Processing: Pasteurization, sterilization, and cooling of various food and beverage products.
