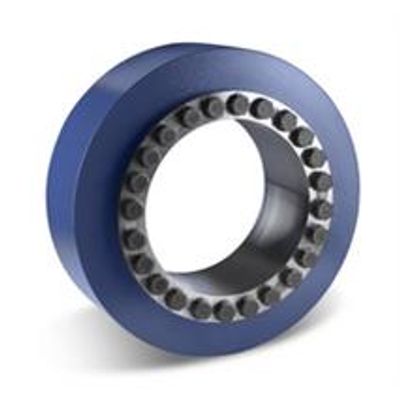

Ameridrives - Model HLD - Hydraulic Shaft Locking Devices
From Wind Turbine Locking Devices
Ameriloc hydraulic (HLD) and mechanical (MLD) locking devices are custom engineered for a lightweight,high torque connection between the turbine main shaft and gearbox. Units are domestically manufactured to provide years of trouble-free service in wind turbines rated up to 3 MW. The greatest advantage of the Ameriloc HLD (Hydraulic Locking Devices) is the significant time savings during installation. With larger diameters,such as 20.8 in. (530 mm),the HLD can be tensioned within only a few minutes, compared to several hours required for a mechanical locking device. The hydraulic pump required for assembly can be a stationary unit,but the use of a hydraulic hand pump is also possible for tensioning at difficult-to-reach places such as the turret of a wind turbine.
-
Most popular related searches
Features
- Zero backlash Reduced shaft stress
- High contact pressure for greater torque
- Easily installed and removed
- Elimination of keyways or splines
- Unlimited shaft positioning
- All units are pre-assembled,ready to install
- Torque range from 25 to 4303 ft.lbs. (34to 5,835 kNm)
- Outer diameters from 12.5 to 53 in. (320to 1,350 mm )
- Shaft diameters from 6.5 to 29.5 in. (165to 750 mm)
- Additional sizes are available upon request
