Ateco - Rewinder Earthing Systems
The Ateco Rewinder Earthing System for external floating roof tanks is an effective and virtually maintenance free electrical grounding system specifically designed for subduing sustained arcs during lightning storms. The unit is bolted to the highest point of the tank and the tinned copper braided cable is bolted to a point on the floating roof - it extends and retracts as the floating roof travels up and down.
-
Most popular related searches
A traditional earthing system relies upon flexible...
A traditional earthing system relies upon flexible stainless steel grounding shunts around the perimeter of the floating roof, however this type of system is only good when the tank is new and the shell is clean; eventually the tank shell becomes coated with product which then compromises the electrical bond.
The principal advantage of the Ateco Rewinder Earthing System is the permanent contact between the roof and the tank shell which is not dependent upon the condition of the tank shell. The length of grounding cable varies with the height of the floating roof and this ensures the lowest possible impedance/resistance to safely discharge lighting currents. The sealed unit is made from stainless steel and can be fitted with the tank in service.

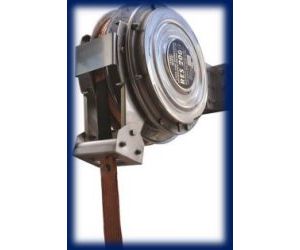

Ateco - RES 2000 - Rewinding Earthing System
The Ateco RES 2000 for external floating roof tanks is an effective and virtually maintenance free electrical grounding system specifically designed for external floating roof tanks.
- Permanent contact between the tank roof and the tank shell
- The length of grounding cable varies with the position of the floating roof giving the lowest possible impedance/resistance to safely discharge lighting currents
- The sealed unit is made from stainless steel and can be fitted with the tank in service
- Weather proof sturdy construction suitable for most environments
- The unit is bolted to the highest point of the tank; the tinned copper braided cable is attached to a point on the floating roof and extends and retracts as the floating roof travels up and down
- Can be installed and maintained with the tank in service
