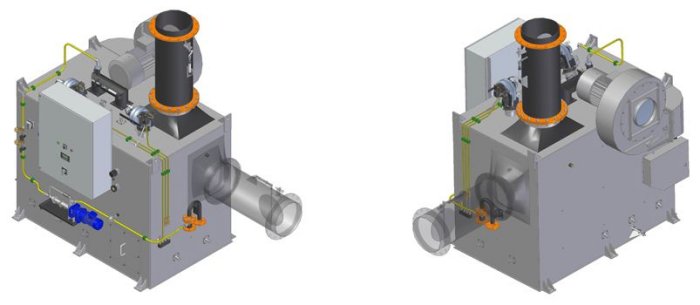

Atlas - Model 200 S - Solid Waste Incinerator
From Incinerator - ATLAS 200 (209 kW) - Solid Waste Only
The 200 S is the ultra-compact solution for burning solid waste only, suitable for smaller vessels, where space is limited and solid waste is minimal.
Specifications:
- Combustion Capacity (kW) : 209
- Combustion Capacity (kcal/h) : 180.000
- Combustion Capacity Solid Waste (IMO waste specification) : 150 L/charge
Incinerator Dimensions
- W: 1509mm
- L: 1628mm
- H: 2152mm
Atlas Incinerators Unique Advantages
- Induced draught air ejector for evacuation of flue gasses; hence Flue Gas Fan is not required
- Settling tank not necessary
- Burning oil sludge with up to 50% water without pilot fuel
- Three chambered design - clean burn
- Atlas designed sludge burner with no rotating parts
- Simultaneous burning of sludge oil and solid waste
