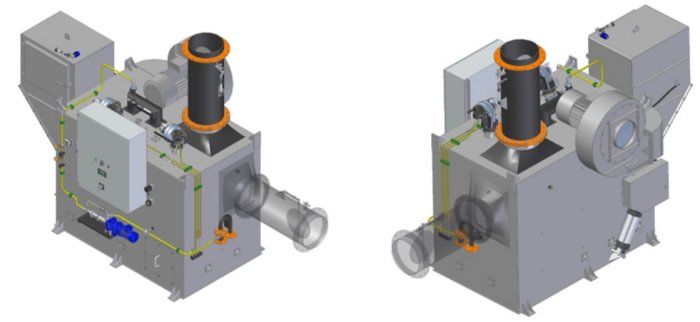

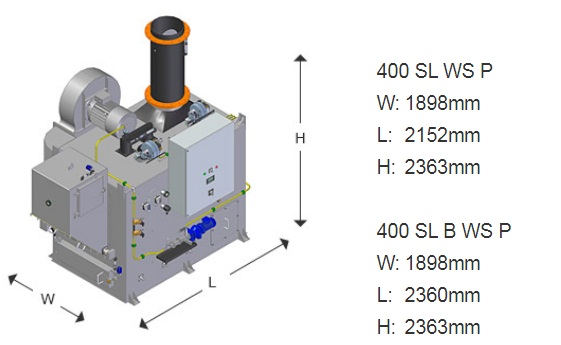

Atlas - Model 400 SL WS P - Solid and Liquid Waste Incinerator
From Incinerator - ATLAS 400 (465 kW) - Liquid & Solid Waste
The 400 SL (B) WS P is the second most compact solution for burning solid and liquid waste, available with a 30L or 70L (waste bag) sluice size, and suitable for offshore supply vessels and small merchant vessels.
Product Details
- Combustion Capacity (kW) : 465
- Combustion Capacity (kcal/h) : 400.000
- Combustion Capacity Solid Waste (IMO waste specification) : 70 kg/h max. 280 kg/24 hours
- Combustion Capacity Liquid Waste (IMO standard is 20% water content) :
- 42 l/h at 0% water content
- 53 l/h at 20% water content
- 84 l/h at 50% water content
Atlas Incinerators Unique Advantages
- Induced draught air ejector for evacuation of flue gasses; hence Flue Gas Fan is not required
- Settling tank not necessary
- Burning oil sludge with up to 50% water without pilot fuel
- Three chambered design - clean burn
- Atlas designed sludge burner with no rotating parts
- Simultaneous burning of sludge oil and solid waste
