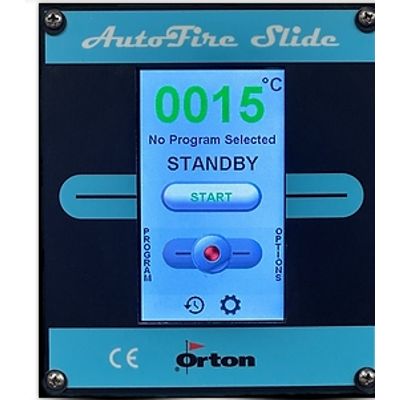

AutoFire - Slide

Cone-Fire Method: The controller provides quick selection of preset Cone programs from Cone 022 to Cone 12. These programs are designed specifically for ceramic firings that require specific heat-work to properly bend an Orton Pyrometric Cone. Every Cone-fire program allows the operator to set a preliminary Preheat cycle for drying ware, an optional hold time at the final heating temperature for additional heat-work and an optional cooling cycle at the end of the heating cycle. Every Cone-fire program also allows the operator to select an optional firing speed that can shorten or lengthen the firing time up to 40% for large or small kiln loads. Heat-work adjustments are automatically calculated and final firing temperatures are automatically determined by the controller based on actual kiln performance. This ensures the kiln firing will produce the perfect results even as the kiln ages and conditions change.

User Programs: The controller allows the operator to create, program and save 35 separate firing schedules with 20 user defined heating and cooling rates, target temperatures and hold times. This method can be used for Glass fusing or Glass Slumping or any other kiln firing application which requires flexibility.

In addition to controlling the kiln temperature, the controller also allows the operator to program the on/off cycle of the kilns auxiliary vent fan if equipped. The vent fan can be selected on or off for each heating or cooling step of the firing schedule. The Aux outputs can also be used to control safety relays, external alarms or a firing complete notification device.
