Axis - Multi-Cyclone Biofuel Boilers
From Flue Gas Cleaning Equipment

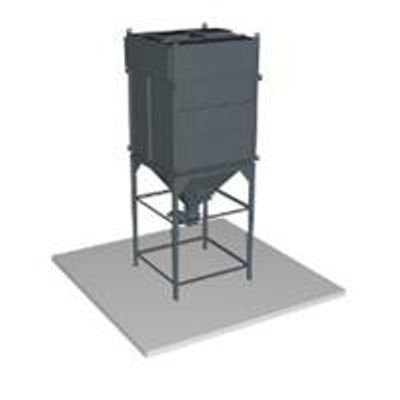

Multi-cycloneconstruction is welded from sheet steel materials. In the cyclone elements,vane type guiding elements are used to create the centrifugal force of the fluegas. The solid particles affected by centrifugal force settle on the outer wallof the cyclone and fall into the collection hopper. The height is regulated by adjustable length supports fastened by bolts. After the height is adjusted, the supports are welded.
-
Most popular related searches
Product Details
Ash collection container can be used for ash removal. The container is sealed with a clamp and ash is released from the hopper into the ash duct using the feeder driven by reduction gear motor.
The flue gas inlet and outlet chambers can be inspected, cleaned and repaired through the service doors installed in the casing.
Advantages
- Quick project implementation at minimal cost.
- Defined supply volume, reliable solutions and equipment.
- Compact dimensions.
- Easy maintenance.
Technical Specification
- Cyclone type: multi-cyclone
- Operating element: “vane” type
- Flow of cleaned flue gas in one element: ~ 700 m³/h
- Max. temperature of cleaned flue gas: 200°c
- Flow velocity in the element: 4.5 m/s ± 15%
- Aerodynamic drag: 550–700 pa
- Solid particle content after multi-cyclone: 100–300 mg/nm³
