Beyond - Model SUS304 - Plate Heat Exchanger

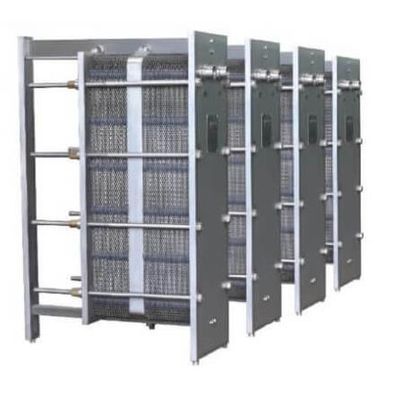

The SUS304 plate heat exchanger is the core component of the plate pasteurizer, which is used widely in the food and beverage industry, which can cool or heat milk and dairy, juice and beverage, hot water, syrup, beer, liquid eggs, fruit and vegetable sauce through cooling or heating medium, it is composed of a group of corrugated metal plates, which assembled between a fixed frame board and a moveable clamping board and are tightened by the tightening bolts, the holes on plates form a channel for fluids to flow, and the heat will be transferred between two kinds of fluids. These plates are installed with sealing gaskets. The sealing gaskets play the sealing function on the channels between plates and make the liquids flow into adjacent channels. The number of plates are determined by flow, physical properties and temperature of liquids
-
Most popular related searches
Product Details
Plate Heat Exchanger Structure
- The excellent structure design makes the material flow more even and improves heat transfer efficiency.
- Double-stage sealing structure and signal hole. If the sealing gasket is damaged, when the medium leaks from the first seal, the leakage problem can be found early through the signal hole and solved in time without causing mixing of heat exchange media.
- The buckle-type adhesive-free gasket makes the gasket have a longer service life, faster and more convenient heat exchange and reduces maintenance costs.
- The precise four-corner positioning system allows the upper and lower guide rods of the plates to be accurately embedded together. The multi-point positioning technology allows the plates to move forwards and backward without resistance to easily complete maintenance. It also allows the gasket to seal accurately, ensuring a longer service life of the heat exchanger.
- For materials with different viscosities, horizontal, vertical and W-shaped corrugated plates are available.
- The front plate is used for meeting higher requirements in food processing. The combination of the high-pressure depth, plate type and relatively few contacts make the running time longer and there will have no interruption. The diverting type can ensure that the liquid flows through the whole plate. The end diameter enables it to carry out CIP cleaning with the same fluid it uses during the use.
- The sealing gasket is not bonded by glue. Users can carry out easy replacement operation of the sealing gasket even when the plate suspends inside the frame.
Technical Parameter
- Plate and frame material is SUS304 or SUS316L, sealing gasket is food grade NBR or EPDM with wear-resistance.
- Working temperature is -10°C - +150°C
- Plate area configuration:0.01-1.3mA2, material capacity is 0.05T/H-15OOT/H
- The plate is suitable for a wide range of material viscosity from 10CPS-50.000CPS.
