Biogas and Biogas Flare

• Biogas flare for landfills, waste treatment factory
• Biogas flare for industrial wastewater treatment systems
• Biogas flare for breeding farms, factories processing waste from agriculture

Choosing Hoa Phat Eco as the design and construction contractor of the biogas system for your plant, customers will be satisfied and assured because:

• Full service and solution, turnkey
• Consulting solutions, technology suitable for required capacity
• Design staff, construction and operation engineers have in-depth knowledge
• Applying modern technology, biogas equipment is manufactured from leading brands in the world
• Ensure appropriate and competitive investment costs, stable and effective operation of the project
• Lifetime warranty and maintenance solutions with preferential service packages

I. BIOGAS FLARE

1. Open flares

Open flares are the most suitable solution in installations where combustion temperature and flame visibility are not subject to any regulations. It includes devices for biogas flows from 10 to 250 Nm3/hr and is characterized by compact dimensions, simple design, ease of installation.

Open flare with overhead flame burner design and suitable where the fire outlet must be kept at least 6 meters off the ground; The maximum capacity is 750 Nm3/hr. The product is designed with a stainless steel frame with a base plate to anchor to the concrete floor. Equipped with high voltage electrode type igniter and UV sensor for continuous flame detection. Fully automatic operation.

2. Semi-enclosed flare

Semi-enclosed flare are the most suitable solution in installation projects where combustion temperature and flame visibility are not subject to any regulations but the flame must be partially hidden and contained within the chamber fire. The combustion chamber can be equipped with a ceramic insulation liner to ensure long-term operation.

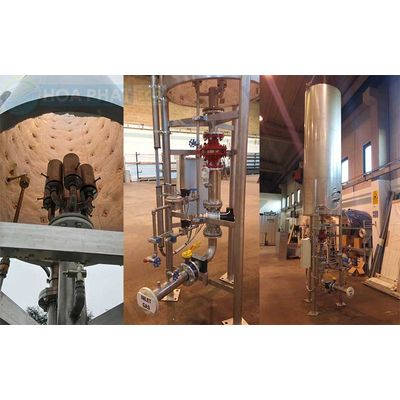

3. Fully-enclosed flare

Fully-enclosed flare are the most suitable solution in installations where combustion temperature and flame visibility are subject to strict safety, high power, high temperature regulations.
The Fully-enclosed flare is a biogas flare in a cylindrical combustion chamber equipped with a durable high-temperature insulating liner that ensures high combustion efficiency and limits both noise and radiation. The burner operates fully automatically with smoke retention time > 0.3 seconds. In the high temperature version the burner is capable of controlling the combustion temperature > 900 ° C – 1000 ° C. The combustion chamber is equipped with a high-strength lining with no anchor parts in direct contact with the flame.
The design of the flare and the combustion chamber as well as the selection of insulation and ancillary equipment make these units suitable for installation in projects with stringent performance requirements and constraints.
