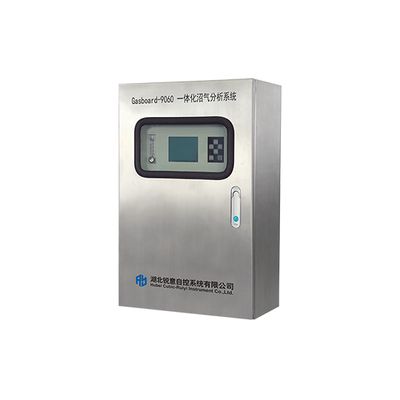

Cubic Instruments - Model Gasboard-9060 - Online Biogas Monitoring System
From Biogas Analyzer
Gasboard-9060 Online Biogas Monitoring System is designed to measure the concentration of CH4 ,CO2 ,H2S and O2 continuously in different biogas applications. It consists of four parts: Gas sampling and conditioning unit, Gas analysis unit, Control unit for auto drain and Data transmission, multiple sampling points is supported. Automatically proceed sampling, analyzing, drainage and so on process. Realized unattended operation 7*24hrs biogas monitoring.
Features
- Wall-mounted stainless steel cabinet for easy installation and high corrosion resistance.
- Integrated gas sampling & conditioning devices, flexible for different site conditions
- Modular sensor design ensures simple maintenance
- Independent sensor and signal processing for each gas component
- Inbuilt air purging module to prolong H2S sensor lifetime
- Thermostatic design for sensors to reduce temperature fluctuation influence
- Support up to 4 sampling channels
Specification
- Component: CH4, CO2, O2, H2S
- Technology: NDIR, ECD
- Measuring range: CH4: 0-100%; CO2: 0-50%; O2: 0-25%; H2S: 0-9999 ppm
- Resolution: CH4: 0.01%; CO2: 0.01%; O2: 0.01%; H2S: 1ppm
- Precision: CH4, CO2 ≤ ± 2% FS; O2, H2S ≤ ± 3% FS
- Repeatability: CH4, CO2 ≤ ± 2% FS; O2, H2S ≤ 2% FS
- Dimensions: H700 x W450 x D220 mm
- Material: stainless steel, plate thick 2 mm
- Installation parts: 4 brackets for wall mounting
- Operating temperature range: -15°C to +45°C
- Operating humidity range: 0-95% RH non condensing
- Environment pressure range: 80-120 kPa
Applications
Biogas plants, landfill sites, water treatment, sludge digestion, biomethane production, CDM project, anaerobic digestion and other fermentation processes.
