Energy Management
Focus on greater energy efficiency. Increasing energy prices are demanding that production processes use fewer natural resources. Optimizing production processes, reducing interfaces and emissions are important preconditions for environmentally friendly and efficient production. The process waste that can be recycled in the process for generating energy delivers an unbeatable advantage for our customers. Dieffenbacher offers its customers tailor-made solutions for more efficient use of energy, thereby contributing to reducing costs and lowering environmental pollution.
Dieffenbacher Key Features
- Complete plant from one source less interfaces
- Long flue gas retention time and NOX reducing systems clean exhaust
- Exhaust air as combustion air heat savings
All type of consumers
All type of consumers

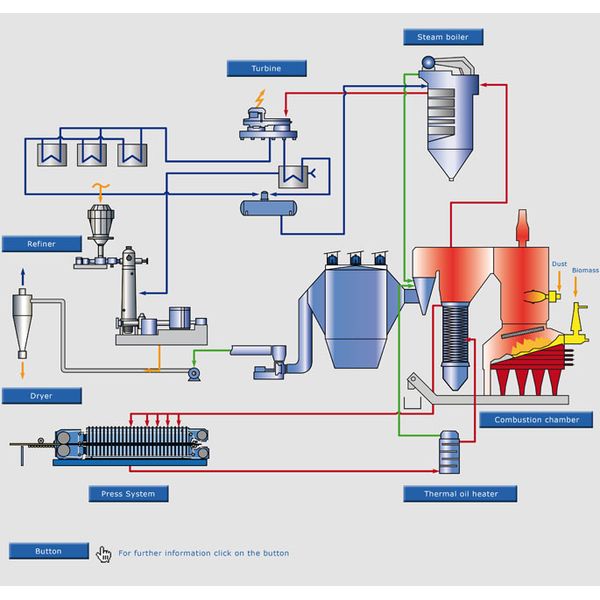

MDF, OSB-, and PB production requires large amounts of process heat. All plants need to dry the material before pressing and the most common and economical way to dry is by using flue gas from combustion rather than with heat exchangers. The press needs high temperature in order to cure the resin, and normally thermal oil is used as heat carrier due to the low pressure required. Saturated steam is required in the case of MDF for the refining process. Each heat type needs to be accurately controlled in order to avoid energy losses and to ensure stable panel production.
Combustion chamber design
Some important design criteria are large combustion and retention chamber to minimize build-up and to enable complete burnout with low CO emissions. Efficient use of SNCR systems to reduce NOX is possible due to the unique design.
Dust burning
Excellent emission data due to the burner design. The dust self-ignites when entering the combustion chamber due to the support heat from the grate. Each burner has its own metering screw, high pressure transport blower and combustion air supply.
