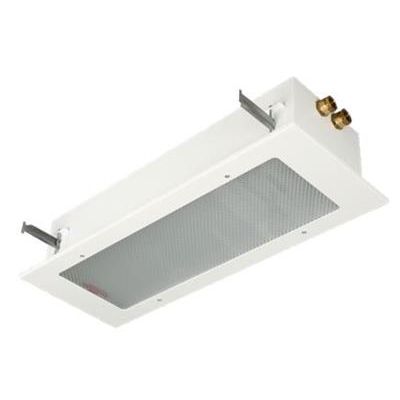

Glamox - Model GRX3 - Explosion Proof Interior LED Lighting

- Model GRX3 - Explosion Proof Interior LED Lighting

From

0

Explosion proof interior lighting fixtures are applicable for hazardous areas, zone 1. They are designed according to rules of maritime classification societies and IEC standards. Ceiling recessed mounted luminaire for LED with easily adjustable mounting brackets, combined with front covers fitted to specific ceiling types. Electro-galvanised steel luminaire housing with white epoxy/ polyester powder coated paint finish. Front cover plates are to be ordered separately. Front covers with polycarbonate guard (FR) and with double prismatic diffusers (DP3) as standard. Frame (FR) for 2 different ceilings: DAMPA/ DAN M300 or NORAC B500. Emergency 1,5 hour (E1) or 3 hours (E3). Frames for emergency as FR GRX3-E (integrated battery) or FR GRX-EB (batterybox). Frames as GRX3 LED IC without emergency. Frame (FR) is to be ordered seperatly as it is accessories.

Technical Specification

Light sourceLED
ElectricDelivered with Ex-approved electronic ballast, HF. Available with internal emergency battery back up as standard.

E1/S, with 90 minutes emergency
E3/S, with 3 hours emergency
HousingSteel powder coated white RAL 9016
Application

Interior lighting fixture for use in marine and Ex-classified Zone 1 areas.

Design

According to rules of maritime classification and IEC norms. For recessed installation in variants of panel ceilings.

MountingSurface or recessed mounting with included suspension rails or adjustable swingarm brackets.
TerminationOne 6 pole Ex-certified terminal block for max 6 mm² cable on 18W. Through-wiring and one termianl block each end on 36W.
Optic/DiffuserDP3:
Frame with double prismatic plastic diffuser. Frame for adaption to actual ceiling type to be ordered separately.

LL:
Low luminance louvre type LL and frame with polycarbonate sheet. Frame for adaption to actural ceiling type to be ordered separately.
Cable entryOne M25 brass cable gland in each end (36W)

Two M25 brass cable gland in other end (18W)
