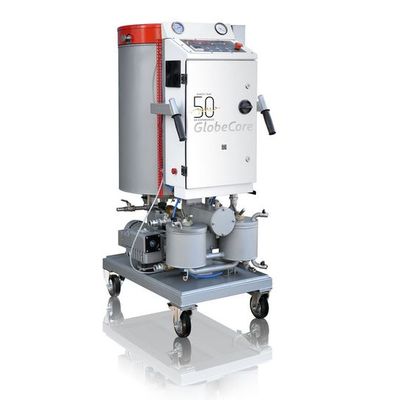

GlobeCore - Model CMM-1.0LT - Transformer Oil Purification Unit

Principle of operation

The oil driven by vacuum passes through a coarse filter with the filtration fineness of 200 microns after which it gets inside a vacuum tank where a heater is located. Rising from bottom to top, the oil heats up and gets into the other part of the chamber through a special channeled lid coming directly to special fillers. Next, the oil flows down the fillers, while the moisture vapor and gases are removed from the oil by vacuum. Then, the oil is pumped out from the tank bottom through two fine filters to the unit outlet. The filtration fineness of the filters can be selected at 5, 3, 1, or 0.3 microns.

Design features

The heater is located inside the vacuum tank which made it possible to reduce the unit dimensions and to diminish the heat losses while heating the oil.

The oil is sucked into the vacuum chamber due to the underpressure generated by a two-stage vacuum system consisting of a backing pump and a booster pump. A new layout has been applied to the rest of the unit components. All of these innovations have given good results in terms of the small equipment size.

• Low power consumption;
• High power of cavitation and acoustic influence;
• Low cost of received cavitational and acoustic energy;
• Simplicity of operation;
• High technological effectiveness in hardware registration;
• It is projected on any productivity;
• Combine technological operations;
• Simplifies hardware registration of processes;
• It is easily aggregated with highly reverse drives;
• Small metal consumption;
• Technological adjustability with optimum parameters.

The CMM-1.0LT unit can be used for:

• turbine oil filtration;
• transformer oil filtration;
• hydraulic oil filtration;
• industrial oil filtration;
• cable oil filtration;
• compressor oil filtration;
• gear oil filtration;
• silicone oil purification;
• purification of dielectric fluid Midel 7131;
• FR3 natural ester transformer fluid purification;
• oil purification of X-ray machines;
• purification of fire-resistant turbine oil Fyrquel.
