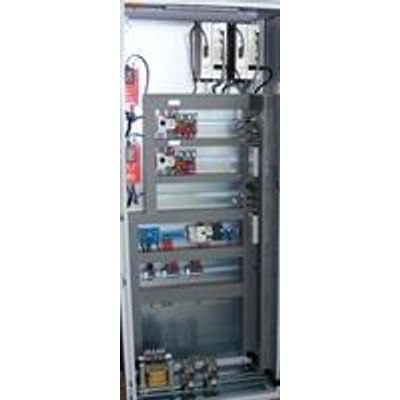

Hasler - Model TS 8xxx - Standard Switch Cabinet
From Solutions - Dosing
Terminals : Wago. Control voltage Transformer : Legrand. DC Supply : Wago. Circuit breakers : Merlin Gerin (C60). Relays, contactors : Schneider ou Finder. Lamps, buttons : Schneider. Speed controller : SEW. Triac module : Phoenix. Service Plug (max 100VA European standard) : LEgrand.
-
Most popular related searches
Products Details
Wired and tested
- Manufacturer : Rittal
- Type : TS 8xxx
- Dimensions : 2000x800x500*
- Plinth : Option (100 or 200mm)
- Door : 1**
- Opening system : Handle
- Lock : Double-bit key
- Painting : RAL 7035
- Protection : IP 55 (EN60529)
- Lighting : No (optional)
- Fan & filter : Option on front door***
- Drawings pocket : Yes
- Main switch (red/yellow lockable on front door) : Schneider
* : other dimensions available, according to equipment to be installed
** : 2 doors if width exceeds 800mm
*** : protection IP43 in that case
Internal arrangement
Execution according to EN 60204
- Cabling: Isolated wires and ferrules
- Wire colours : According to EN 60204***
- Wire labelling : Optional (Muurtechnic system)
- ***Power : Black
- Control voltage : AC Red
- 24V : DC Blue
- External voltage : Orange
