Helios - Model OPUS HE -OC2066 - 24V - 220VDC DC Power Systems

• Efficiency up to 97%
• Convection cooling – no fans
• Outputs 24V, 48V, 60V, 110V, 125V, 220VDC
• Flexible design with full front cabling
• Communication Protocols: Ethernet TCP/IP, Modbus TCP/IP, SCADA IEC61850, SNMP and RS-232

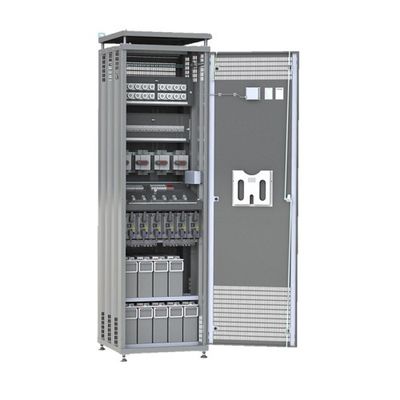

OPUS HE power systems are robust backup power systems that deliver from 2 – 24 kW of output power at 48V, 60V, 110V, 125V and 220VDC, and from 1.5 – 18 kW at 24VDC output. The cabinets have standard configurations for 3, 6 or 12 MHE rectifier modules, VIDI+ controllers, connections for mains and battery, and load distribution fuses or MCBs.

Systems can easily be tailored to match unique application requirements by changing the quantity of rectifiers, battery fuses, battery shelves, load distribution and many other features. In addition to 12 configurable relay alarms, systems can be remotely monitored via modern communication protocols such as Ethernet TCP/IP, Modbus TCP/IP, SCADA IEC61850, SNMP and RS-232.

• Efficiency up to 97%
• Fan Free – Natural convection cooled
• Standard output voltages: 24, 48, 60, 110, 125 and 220 VDC
• Scalable power from 1.5 kW to 24 kW, N+1 redundant
• Configurable battery connections:
  • 1-3 strings
  • MCB
  • MCCB
  • Switch fuse protection
• Configurable battery shelves and load distribution modules
• Optional IP21 kit and drip cover
• Optional IC cabinets and IP31 protection
• EMC ratings:
  Cabinet: EN61439-1, EN61439-2
  Rectifiers: EN 61000-6-1 / -2 / -3 / -4 / -5
  EN50121-4 Rail, ETSI EN 300386 (48/60V)
• Safety ratings:
  Cabinet: EN61439-1, EN61439-2
  Rectifiers: EN 62368-1, EN 50124-1 rail

• Critical infrastructure
• Transmission substations
• Distribution substations
• Railway signaling and substations
• Process industries
• Telecommunications
