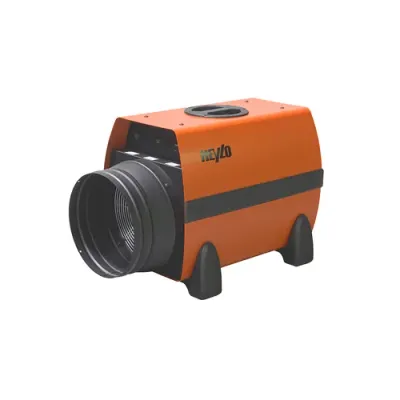

Heylo - Model DE 20 SH - Electric Heater
From Disinfection Units
Special heaters for hot air operation at high temperatures. For disinfestation of buildings, pest control, tempering (curing) of plastics and plastic coatings, drying of containers or for generating process heat of over 120°C in industry. For use in annealing: Glass fiber composites are manufactured with epoxy resins and must be heated to temperatures of about 75°C for curing. The special DE 20 SH electric heater is particularly suitable for ensuring a uniform and high temperature.
-
Most popular related searches
Details
The heater can be equipped with a 5m long high-temperature hot-air hose for targeted application of the heat.
The speed regulation of the fan is the special feature of the DE 20 SH. This allows the air volume to be selected continuously. At low intake temperatures, a high discharge temperature of 120°C can be generated by reducing the air volume. Above 140°C, the electrical power is automatically reduced to prevent damage to the hose.
Key Features
- Max. temperature 110-120°C
- Temperature increase – variable
- Output temperature adjustable by changing the air flow
- Max. air input 60°C
- Compact and lightweight
- DE 20 SH delivers 1,410m³/h of hot air using only 18kW 400V (three phase)
- Adjustable fan speed
- Safety thermostat: automatic shutdown in case of more than 140°C in hose
- Spiral heating element for quick and even heat
- Built-in hour counter
- Stackable
Product Specifications
- Heating power : kW : 18
- Heating power : Btu/h : 61,400
- Heating power : kcal/h : 15,480
- Air flow : m³/h : 1,410
- Power supply : V/Hz : 400/3ph/50-60
- Rated current : A : 26
- Protection class : : IP21
- Remote thermostat : : Analogue
- Product size (l x w x h) : mm : 730 x 414 x 482
- Box size (l x w x h) : mm : 780 x 440 x 570
- Net/gross weight : kg : 22/26
- Pallet : pcs : 9
