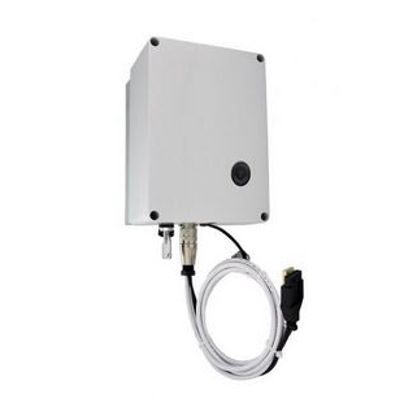

Houston - Model Armadillo - Crossfire Multilane Traffic Collector
Houston Radar Armadillo Crossfire is a state of the art non-intrusive traffic collector designed for volume collection on the roads with up to 6 lanes of detection. It is the premier product in its class.
-
Most popular related searches
Products Details
- World’s smallest and lightest 6 lane non-intrusive vehicle volume collector.
- Up to 6 user-configurable lanes allows for maximum data collection flexibility.
- Companion Windows application provides intuitive GUI to ease setup on the road.
- Inbuilt color sighting camera makes alignment during setup a snap.
- Advanced LiFePO4 rechargeable battery allows over 1 week of data collection.
- Built-in statistics storage memory for stand-alone data gathering.
- Long range Class I Bluetooth wireless interface allows wireless setup and data downloads.
- USB interface allows wired data download and battery charging.
- Included Windows Statistics analyzer software produces detailed reports.
- Included PC side Class I Bluetooth adapter provides optimal Bluetooth connections.
- Included 110/240VAC hi-speed charger fully charges battery in 3.5 hours.
- Included 12VDC vehicle adapter allows convenient field charging.
- -20C to +60C operational temperature range.
- Optional high efficiency MPPT charger with 10W solar panel kit available.
- FCC pre-approved with CE mark.
Specifications
- VCC Inbuilt 9.6VDC LiFePO4 battery
- ICC@9.6VDC 38 mA (0.25 Watts) Avg.
- Radar RF out 5 mW maximum
- Occupied Band 24.020 to 24.230 GHz
- Modulation Type Frequency with linear ramp
- Operating °F (°C) -4 (-20) min to 140 (60) max
- Max Pickup Distance 128 feet (39m)
- Beam Angle 20°x60°
- Beam Polarization Linear
- Sample & Update Rate 160 times/sec
- Included Camera Color VGA
- Dimensions 4.8Wx6.8Hx5.3D” (12x17x13 cm)
- Weight 3 lbs (1.4Kgs) with battery
