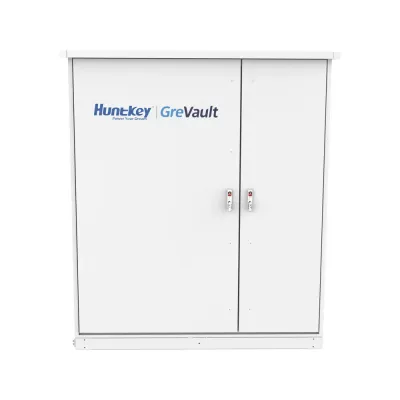

Huntkey GreVault - 215kWh C&I Energy Storage Battery System
From C & I Energy Storage Battery
The 215kWh C&I energy storage battery offers a robust and efficient energy solution for industrial and commercial applications. Designed with a modular battery box, it integrates LFP batteries known for their safety and efficiency. The system supports air-cooling for battery temperature management and allows for flexible expansion to meet increasing energy demands. The intelligent temperature control function enhances the system's efficiency and longevity by adjusting in real-time conditions. The battery's notable specifications include a nominal energy of 215kWh, a voltage of 768V, and a capacity of 280Ah. It's equipped with a reliable Modbus-RTU/TCP communication interface and designed to operate in diverse environmental conditions, including temperatures ranging from -20 to 50 degrees Celsius and altitudes up to 3000 meters. The system incorporates heptafluoropropane-based fire fighting and maintains a high protection rating of IP54, ensuring durability and operational safety.
Specifications
- Name : 215kWh C & I Energy Storage Battery
- Nominal Energy : 215kWh
- Nominal Voltage : 768V
- Nominal Capacity : 280Ah
- 1P240S : 56A
- Standard Discharge : 56A
- Max Charging Current : 150A
- Max Continuous Discharging Current : 150A
- Upper Limit Charging Voltage : 840V
- Discharge Cut-off Voltage(Udo) : 660V
- IP Grade : IP54
- Cooling : Air cooling
- Fire Fighting System : Heptafluoropropane
- Communication : Modbus-RTU/TCP
- Operating Temperature Range : -20-50℃
- Operating Humidity : ≤95% (No condensation)
- Operating Altitude : ≤3000m
- Dimensions (L*W*Hmm) : 1100*800*2380
- Weight : 2300kg
Company Profile
Grevault is one of the subsidiary companies of Huntkey. We independently designs, develops, and manufactures household energy storage systems, industrial and commercial energy storage systems, photovoltaic power plants, charging piles, new energy vehicles vehicle power supply.
Established in 2008, the R&D lab focuses on R&D design verification, new materials, experimental technology application, product function test, BMS system verification, software process verification test, high-voltage electrical stability test, etc.
Corporation Advantage
Technical Support
- Program : Recommend the most suitable products to customers based on industry experience
- Test: Cooperate with customers for system testing to accelerate their R&D progress
- Improvement: Professional after-sales team, closed-loop improvement for possible problems
- Iteration: Provide the latest technological solutions when technology advances
Quality Control – Intelligent Quality Management
Intelligent quality tracing system
Collect and trace the quality data throughout the life cycle (material – production process – finished product – shipping – client side – market side – user side)
Intelligent quality data alerting and decision making
- Open the end-to-end data interconnection and establish a big data information management platform.
- Use big data and statistical tools to conduct intelligent analysis and early warning of quality data, and realize intelligent decision-making and preventive control of quality problems.
Intelligent quality closed-loop system
- Realize digital and intelligent closed-loop management of problems (task reminder, escalation processing)
- Establish a case base of lessons learned (traceability, query, analysis, review).
