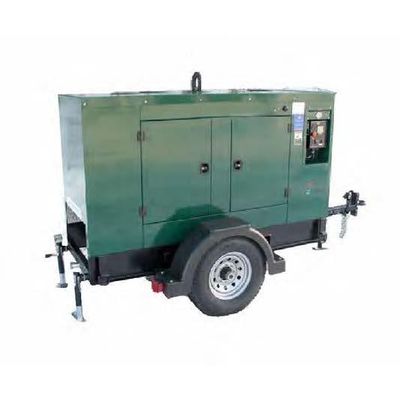

Hydra-Tech - Model HT74DVDQ - Mobile Hydraulic Power Unit
The Sound Attenuated power unit is designed to be used in residential areas and other locations where low sound levels are required. With an efficient Deutz diesel engine this unit meets today’s emission standards and demanding hydraulic power requirements.
-
Most popular related searches
Specifications
- Weight: 4306 Lbs
- Hydraulic Oil: Chevron Clarity AW46
- Engine: Deutz TD 2.9 L4 (EPA Tier 4 Final)
- Horse Power: 74 @2500 RPM
- Hydraulic Output: Variable, Max. 29 GPM (109 LPM) @ 2900 PSI
- Hose Port Size: Pressure 1' (25mm) Return 1 1/4' (31.75 mm) Case Drain 1/2' (13mm)
- Oil Filtration: 10 Micron (Standard)
- Oil Reservoir Capacity: 60 U.S. Gallons (227 Liters)
- Fuel Tank Capacity: 115 U.S. Gallons (435 Liters)
- Fuel Consumption: Approx. 3.5 Gal/Hr (15.9 Liters/Hr)
- Dimensions: H 82″ (208 cm) x W 70″ (178 cm) x L 156″ (396 cm)
