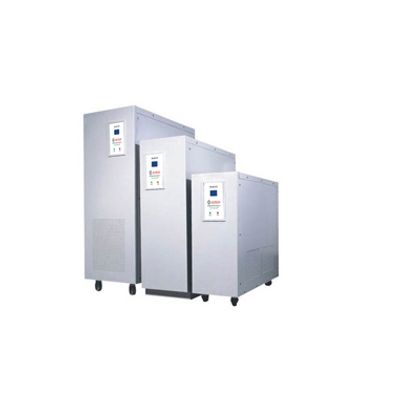

Industrial Ups Systems
From Industrial Electronic Solutions
ELTECH’S industrial UPS system overcomes and completely vanishes the unpredictable power supply behaviour to serve clean and efficient uninterrupted power, avoiding heavy losses caused due to failure in vital systems like communication, data centers, process control, electro medical and electromechanical process equipments and many other. With latest Conversion and SPWM technology ELTECH’S UPS Systems ensures clean and regulated power essential for critical applications. The effective screening and ideally designed filters ensure the output is free from EMI/RFI thus providing safety to the critical loads. The very high energy conversion efficiency enables users to conserve the precious Energy. The ELTECH UPS systems are rated for its FULL OUTPUT capacity meant for its continuous duty. ELTECH Protects the sensitive installations from surges, sags, black-outs, brownouts and power failure with following features,
-
Most popular related searches
Features
- Latest SPWM technique
- Graceful powder coated steel Cabinet with easy access to components
- Supports long range of input and output configurations
- Very High Efficiency – Long MTBF
- Highly reliable protection and changeover logic
Application
All electrical and electronic machineries, Hospitals, Banks, Process industry, Scientific labs, Electro-mechanical machineries, chemical and pharmaceutical units, communication equipments, data centers and many more.
Standard Technical Features
Double conversion topology – All Eltech series industrial UPS systems are double conversion type; its galvanic isolation ensures no spike or surge in the output.
High frequency PWM based inverter – Conversion of DC to pure AC is achieved with high frequency PWM based inverter using IGBT. Auto trickle monitoring technique is employed in its floating cum boost charger
section.
Parallel Redundancy for power safety and reliability – ELTECH specialises in the manufacturing of dual redundant parallel load sharing type UPS systems and multiple redundant (N+1 configuration) systems to suit highly critical applications.
Dual redundant series UPS systems of ELTECH are approved with TEC of Dept. Of Telecommunications and RDSO of Ministry of Railways.
Auto Transfer static switch – ELTECH UPS systems have load transfer feature in case of high current drawn from the load helping loads to keep in live state always. The UPS goes to bypass on sensing overload condition.
Built in isolation transformer – By generating dedicated ground, built in isolation transformer make sure to maintain pure and noise free output for the critical loads.
High Efficiency – As employed with highly efficient conversion technology ELTECH enables user to conserve the precious energy with high efficiency of >95%.
