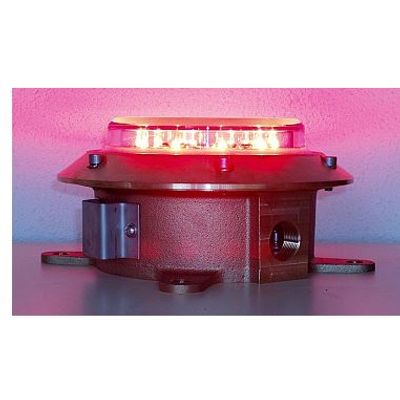

ITO - Model IOL 150 - Aeronautical LED Obstruction Light
From Offshore Helideck and Obstruction Lighting - Helideck
A membrane is incorporated into the base for air pressure equalisation and to prevent moisture from entering the casing. Compared to conventional aeronautical obstruction lights, this lantern has lower maintenance costs, low power consumption which makes it very suitable for solar powered systems, LED long life expectancy and is highly reliable. The IOL 150 complies with the following standards: ICAO annex 14, volume I, chapter 6, type A/B Low Intensity Obstruction light, FAA L810 regulations.
-
Most popular related searches
Specifications
- Application: Aeronautical obstruction light
- Lens material/type: Polycarbonate high impact resistant
- Housing: Marine grade gun metal
- LED type: High intensity
- LED life expectancy: Approx. 100,000 hours
- Colour chromaticity: Red within ICAO specifications
- Connection: Ex e terminals max. 4 mm2, external, internal M6 earth connection
- Cable entry: 2 cable entries M25x1.5
- Horizontal spread: 360 degrees
- Vertical divergence: 180 degrees
- Effective Intensity: 32 candela
- Character: Fixed light
- Power consumption: Max. 7 watt
- Voltage range: 110-250 VAC 50/60 Hz., option 12 volt - 34 volt DC
- Operating temperature: -40 / + 40 degrees Celsius
- Protection class: IP66 (design)
- Mounting: 4 holes ø11 mm on a 200 mm pitch circle
- Weight: 5.7 kg
