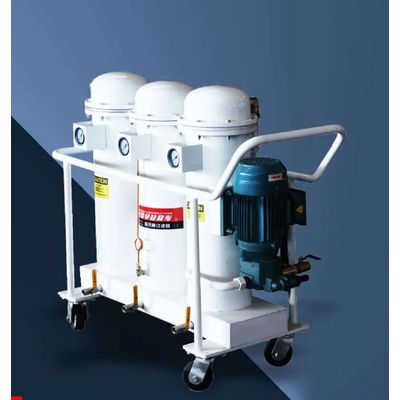

Jingyuan - Model JY-H330 - Lubricating Oil Purification Fine Filter
From Industrial Oil Filtration
The main function of H330 is to filter new oil, pump the oil stored in the oil tank or tank to the system oil tank, purify the oil in use, and improve the oil filtration performance of the existing system. It can be used for hydraulic oil and gear oil. With the purification and filtration of lubricating oil, it can break the emulsified structure and remove small amount of water (ppm) in the oil.
Product Details
China Oil Purifier Manufacturer-jingyuan®
- Oil Purification Systems
- lube oil filtration
- Lubrication Oil Filters
- Lube Oil Filter Cart
- Hydraulic & Lubrication Oil Filters
- Lube Oil Treatment System
- Hydraulic Oil Filtration Machine
- Gear Oil Filtration Machine
- Portable Oil Purifier Cart
- Industrial Filtration Equipment
The necessity of oil filtration
Solid particle contaminants are the most common factor leading to failure and shutdown of hydraulic and lubrication systems, so industrial oil must be filtered and purified before being injected into the system. The pollution degree of unpurified new oil often exceeds the requirements of actual hydraulic system oil regulations. Since new oil has a high initial pollution level, most new oil (even if it is just extracted from an oil tank) is not suitable for direct use. There are many reasons for the pollution of new oil. Various pollutants, no matter particles or moisture, may be mixed into the new oil during processing, mixing and storage.
Benefits
- Prevents trouble to the hydraulic equipments
- Improves machine reliability and productivity
- Longer life of all hydraulic components, pumps, servo-valves and other equipment
- Very important reduction of oil consumption and the resulting waste oil
- Inline filter life extended
Technical Specifications
- Model: JY-H330
- Flow rate: 10~40L/min
- Filtration accuracy: 2~25μm
- Filter material: Jingyuan polymer membrane material
- Working pressure: 0.2~0.3Mpa
- Applicable oil: hydraulic oil, engine oil, gear oil, turbine oil, transformer oil (petroleum or mineral base oil)
- Power supply: 380v (can work continuously for a long time)
- Size: 1160×450×1000mm
- Weight: 148kg
