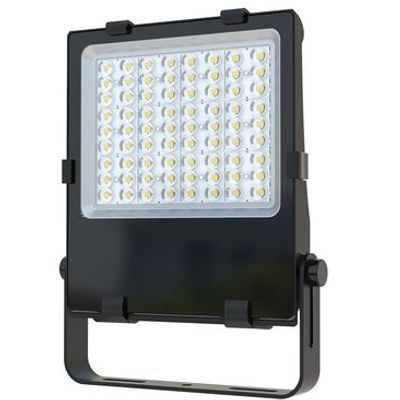

- Model LSNFL-100W(XXK) - LED Flood Light

From

0

This high quality NEMO LED flood light is designed with the latest technology for optimal performance and is ideal for signs, accent architecture,flags, parking lots, and landscape lighting. LED technology has a longer life expectancy than fluorescent lighting, and emits no UV rays,contains no mercury, and does not flicker.

Products Details

  • Integrated aluminum material (ADC12) die-casting;

  • The surface is made of black powder sprayed with special metal powder for outdoor use, which increases the frostiness and convexity and expands the heat dissipation area;

  • The chip terminal can be plugged and unplugged between the PCB and the power supply for post-maintenance (replacement of the drive or light source board);

  • Tempered glass adopts snap-on fixing method, which is convenient for post-maintenance (can be opened without tools);

  • The lightweight and ultra-thin design ensures light weight and is easy to transport and install under the premise of ensuring heat dissipation of the lamp;

  • The streamlined appearance has a small drag coefficient, which is also conducive to air flow and heat dissipation;

  • Meet ROHS standards;

  • The outer casing is waterproof and integrated, and the waterproof level can reach IP66;

  • The product has passed multiple certifications, ETL DLC ENEC TUV CB SAA LM79 LM80 IK08 Salt spray;



Specifications

  • Watt 100W
  • Lumen 16000 (160Lm/W)
  • LED Brand Lumileds 5050
  • Input Voltage 100-277V
  • Driver Meanwell
  • IP & IK IP66 & IK08
  • Color Temp 3000K, 4000K, 5000K, 5700K, 6000K, 6500K
  • Optional Beam Angle 20, 60, 90, 30*70 degree, 94*47 degree(TypeIV), 135*60 degree(P50)
  • Output current 0.92A
  • Number of lamp beads 72
  • Light source Philips 5050 Philips 3030
  • Output voltage 48V
  • Certifications ETL DLC ENEC TUV CB SAA LM79 LM80 IK08 Salt spray

Features

  1. Buckle design,tool free open and maintanance
  2. Buckle and tempered glass all hang to the lamp when opens
  3. Various lens,PCB board and drivers changeable

Packaging

  • 100‐150W: 1pc/CTN
  • carton size: 50*39*13cm GW: 4.2Kg
