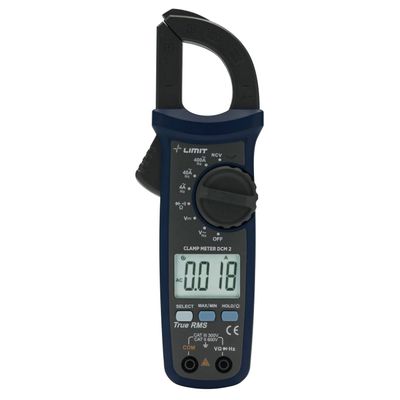

LIMIT - Model DCM 2 - Clamp Meter for Electrical Testing

- Model DCM 2 - Clamp Meter for Electrical Testing

From

0

The Clamp Meter Limit DCM 2 is a precise electrical testing tool designed for professionals in the field. It is engineered to measure current without needing to make direct contact with wires, thus enhancing safety and convenience. The device features advanced measurement functionalities including AC/DC voltage, resistance, continuity, and frequency. Its compact design, combined with a user-friendly interface, allows for easy operation in various environments. This tool is suitable for diagnosing electrical issues in residential, commercial, and industrial settings. The Limit DCM 2 also includes a data hold function to ensure readings can be recorded accurately. With its robust construction and built-in safety features, this clamp meter is a reliable solution for demanding electrical testing tasks.

Details

Digital clamp multimeter with NCV detecting measures DC/AC voltage, AC current and current frequency, resistance. Also testing diode, continuity with buzzer, datahold, low battery capacity warning. Supplied completly with test leads, carrying case, 2x AAA batteris and manual. Max. display 4099. Safety insulation CAT II 600 V/CAT III 300 V according to IEC 61010.

FEATURES

  • Length: 215mm
  • Weight: 0.248kg
  • No. of batteries: 2qty
  • Width: 63,5mm
  • Manufacturer´s description: DCM 2
  • Safety classification: CAT II 600V/ CAT III 300V
  • Current inaccuracy (AC): ± (4%+10)
  • Voltage inaccuracy (DC): ± (0.7%+3)
  • Voltage inaccuracy (AC): ± (1%+5)
  • Voltage measurement range (DC) max: 600V
  • Voltage measurement range (AC) max: 600V
  • ETIM class code: EC000069
  • Automatic shutoff: 15min
  • Background lit Display: Yes
  • Resistance Inaccuracy: ± 1%+2
  • Battery type: Alkaline
  • Battery size: AAA (1.5 V)
  • Resistance measurement range, max: 40MΩ
  • Resistance measurement range, min: 400Ω
  • Resistance resolution: 0,1Ω
  • Digit height: 15mm
  • Voltage measurement range (AC) min: 4V
  • Voltage measurement range (DC) min: 400mV
  • Voltage resolution (AC): 1mV
  • Voltage resolution (DC): 0,1mV
  • Current measurement range (AC), max: 400A
  • Current measurement range (AC), min: 4A
  • Current resolution (AC): 0,001AA
