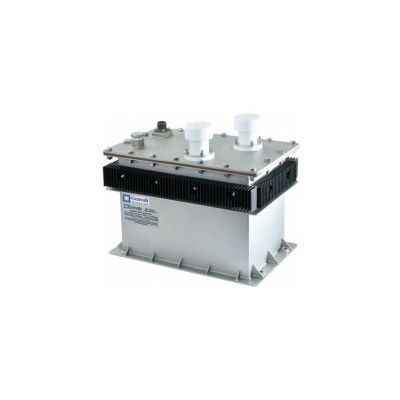

Model 6.4kW HV - High Voltage Transformer Rectifier
6.4kW High Voltage Transformer Rectifier outputting 10-50 kilovolts. Direct Current - 6.4 kilowatt.
-
Most popular related searches
Specifications
- Power rating 6.4kW
- Frequency of operation 20kHz
- Output voltage 46kVDC on full load
- Average current 140mA max.
- Input voltage 450V peak to peak
- Primary current Quasi sine wave (zero voltage switching)
- Leakage inductance <30uH
- Pulse load current 4A max.
- Primary average current 20A max.
- Primary pulse current 55A max.
- Dimensions 265W x 425D x 347H
- Material Stainless steel
- Weight 50kg max.
- High temperature operation +55°C
- High temperature storage +70°C
- Low temperature operation -20°C
- Low temperature storage -30°C
- Relative humidity test 95% RH at 40°C Non-condensing
