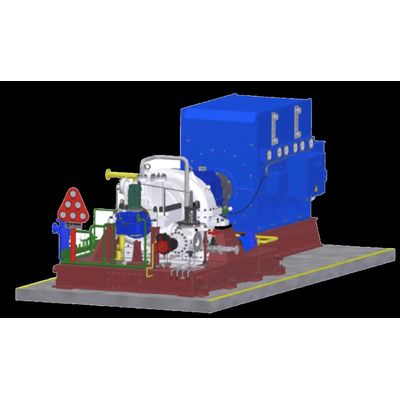

Model BCT-6 - Extraction Condensing Turbine
BCT-6 is the universal turbine of choice for small power plants. It’s rugged construction and simplified control system ensures long duration between overhauls, and simple operation for Power plant managers. The rigid rotor construction ensures operators do not have to worry about high-speed balancing and critical speeds during start-up. An extraction connection is provided for process steam requirements. The turbine has found wide acceptance in Biomass based, Waste to Energy and Captive generation power plants as well as district heating applications.
Features

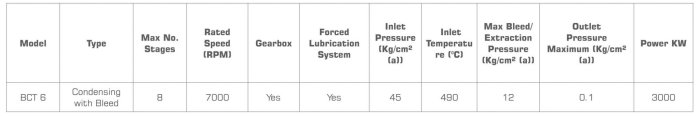

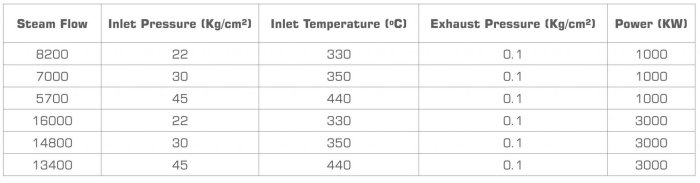

Reliable and rugged condensing turbine designed for steam flows upto 25 TPH, and 3.5 MW Shaft power.
- Rated speed of 7000 RPM Turbine ensures a balance between ease of operation and efficiency.
- Upto Eight Stage of blade rows for maximum efficiency.
- Provision for steam extraction upto 12 bar(a).
- Horizontally split steam casing ensures easy inspection of the internals without disturbing the steam lines.
- Rigid rotor construction ensures no requirement of Barring Gear.
- Can be provided with tilting pad white metal lined gearbox bearings.
- Can be provided with Hydro-Mechanical or Electronic Governors.
- No requirement for Control Oil System.
- Ideal for captive power plants, solar thermal systems and waste to energy plants.
- Suitable for Low Pressure, Low enthalpy steam sources.
- Exhaust spray system provides high turndown ratio.
