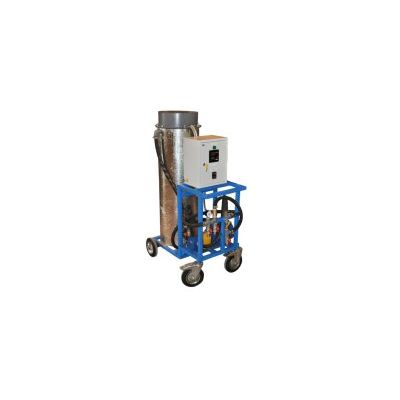

Model BPM - Oil Heating Block
From Heating
BPM is used for flowing heating of transformer, hydraulic and other mineral oils. Oil heating block can be integrated into the oil recovery unit, which contains a group of adsorbers filled in with silica gel. This block can be also used as an individual unit for oil heating and pumping over. The heating method consists in transfer of oil through heating tank, in which pipe electric heaters are installed.
-
Most popular related searches
Technical Data:
- Parameters: Value
- Productivity, not less than l/min: 15
- Power consumption, maximum kW: 15
- Maximum heating difference in one cycle, °С: 50
- Outlet pressure, not more than MPa (kg/cm2): 0,15 (1,5)
- Weight netto, kg: 110
- Minimal oil volume needed to start the equipment, l: 65
- Size
- Length, mm: 900
- Width, mm: 550
- Height, mm: 1300
