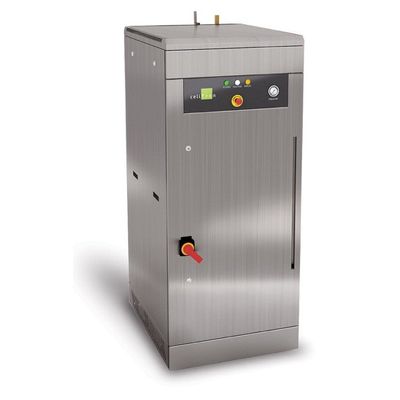

Model E Series - Electrical Clean Steam Generators
The Electrical Clean Steam Generator family consists of fully automaticsteam boilersdesigned to the highest quality standards toprovide dry, saturated, stable and high quality clean steam for medical steam sterilizers, autoclaves and washer-disinfectors in hospitals, clinics and laboratories. The construction of these clean steam generators is modern, ensuring reliable operation, incorporating high-tech features. Behind its success is a team of multi-disciplinary engineers, who have developed sterilization equipment on OEM basis for more than 20 years, working for leading manufacturers around the world.
-
Most popular related searches
Details
- Easy to adapt and integrate- Fit in with most autoclaves regardless of brand
- Centralized- 1 unit can serve more large steam sterilizers
- High capacity saturated steam production- 100-300 kW, up to 420 kg/hour of steam
- Easy to install– Within 1 day
- Easy to use- Continuous, automatic operation, without operator
- Controllable, reliable and safe– Microcontroller based control system with safety equipment
- Simple authorization– Easier approval process
- Clean solution- Instead of diesel engine operation, without emitting harmful substances
- Small footprint: Fast and economical– With low energy consumption providing the maximum steam output
- Best solution– For clinics, laboratories and central sterile processing departments of hospitals
Specifications Of Our Electric Clean Steam Generator
The electrically heated steam generators are supplied with stainless steel 316L round vessel(s), which conforms to the Pressure Equipment Directive (PED) and incorporated with a preheated mineral free water reservoir. The clean steam boiler’s framework, panels, piping and heating elements are also made of stainless steel.
Thanks to the compact and stand-alone design, these steam generators are easy to install in a hospital’s sterile processing department, either next to the sterilizer or washer-disinfector units or in the utility room.
Through the numerous safety features, the Clean Steam E Series steam generators meet the highest standards and requirements for quality, safety and operation (2006/42/EC– Machinery Directive; Pressure Equipment Directive (PED); EN 60204-1, EN 61000-6-2 and EN 61000-6-4 safety and EMC standards, etc. and CE approved).
Our electric clean steam generator has microcontroller-based control system; state of the art Freescale technology automatically controls all operations. The system includes a digital 2x16 character LCD display with keyboard, communication, self and remote diagnosis, ensuring a reliable, safe, user-friendly and fully automatic operation.
The design of all internal and external components together with the self-diagnostic system ensure easy maintenance, resulting in reliable service and performance and satisfied operators.
Specification Table:
Model Clean Steam E Series: Clean Steam E-200
Capacity: 200 kW
Max. steam production: 280 kg/h
Operation pressure: 3.5 bar
Saturated steam temperature: 148 °C
External dimensions W x H x D: 850 x 2000 x 1050 mm
Approximate weight: 520 kg
Power: 3 ph. 380-400 V, 50/60 Hz
Pressure vessel no.: 2
Pressure vessel type: stainless steel 316L round chamber
