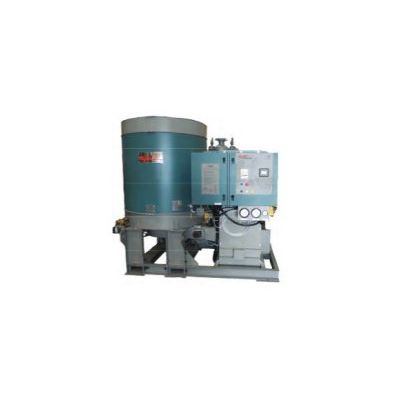

Model E204, 200 BHP - Steam Boiler
From FMB Burner Steam Generator
Clayton steam generators will normally fit in any available area while also reducing construction costs on new building installations.
-
Most popular related searches
Products Details
FUEL EFFICIENT
High efficiency which is inherent wfththe Clayton design translates into lower operating costs and improved overall system operation
RESPONSIVE
Very rapid responseto changing steam loads. Clayton steam generator will automatically modulate to match your steam load profile while maintaining system steam pressure
SAFE
Oir once through design el ininates the possibility of a steam or water side explosion. The Clayton steam generator is simply the safest steam boiler on the market.
LESS WATER WASTE
Clayton's design concentrates TDS blowdown significantly which reduces wasted fuel, water and chemical costs.
FAST START
Full Steam pressure and output in minutes from a cold start-up saves fuel and labor c ost over conventional designs. Eliminates wasted fuel from idling.
AUTOMATIC
Operation is automatically controlled and the Clayton steam generator can be started from a single switch or remotely using an automatic start option.
LOWWEIGHT
The relatively light weight means that all sizes of Clayton steam generators can be easily moved and installed even in
areas with limited structural support.
RELIABLE
Reliability of the Clayton steam generator is field proven and unsurpassed. This results in greatly reduced mainte-
nance and attendance.
HIGH QUALITY STEAM
Steam Quality in excess of 99.5% dry is assured at all times. TNs is the highest steam quality of any competitive design.
Less water and impurities further increase your energy effi-ciency.
