Model K-2-16 - Central Heating Solid Fuel Boiler
From Domestic Boilers - Manual Loading Boilers
Multipurpose bottom combustion solid fuel boiler. High efficiency (82%). Large fuel load (72 dm³). Fuel is loaded from the front or top. Automatic adjustment of boiler temperature. Secondary air supply. Secondary burning chamber with refractory concrete catalyst. Smoke exhaust, ignition and draught dampers. Fire grates shaking mechanism. Heat exchanger cleaning from both boiler’s sides. Emergency cooling coil. Possibility to install smoke exhauster. Possibility to mount pellets burner. Housing inner wall steel plate thickness – 6 mm. Warranty for boilers frame 4 years.
Product Description
- Nominal output, kW 16
- Heated area (when thermal resistance ratio of the building is 2,5), m² 100…200
- Fuel used wood logs*
- Efficiency (firing wood logs), % 82
- Combustion chamber volume, dm³ (l) 72
- Fuel load combustion duration, up to, h.** 16
- Logs size, not greater than, cm 35
- Water volume in the boiler, l 46
- Flue diameter, mm Ø160
- Minimum chimney draught, Pa 18
- Overall dimensions, HxBxL, mm 1160x670x1180
- Mass (brutto), (± 10 %), kg 325
* Coal, pieces of waste wood, peat and saw dust briquettes may be used as a substitute fuel. It is not recommended to fire wood logs with moisture content exceeding 25 %.
** The duration of fuel load burning depend on fuel type, moisture content, outdoor temperature and other factors.

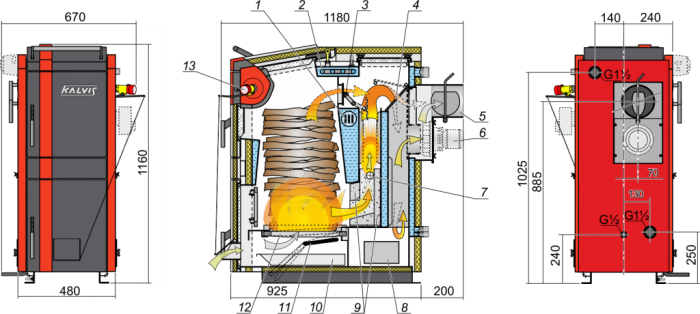

Electric heating element’s place
- Electric heating element’s place
- Cooling coil
- Smoke removing damper
- Ignition damper
- Flue and draught damper
- Exhauster mounting place
- Secondary air supply inlet
- Soot cleaning covers
- Burning chamber’s refractory bricks
- Ashtray’s drawer
- Fire grate shaker
- Fire grates
- Draught regulator
