Model RI-D18-100-CT - Single Phase Multifunction Energy Meter
From Rayleigh Instruments - Multifunction Meters

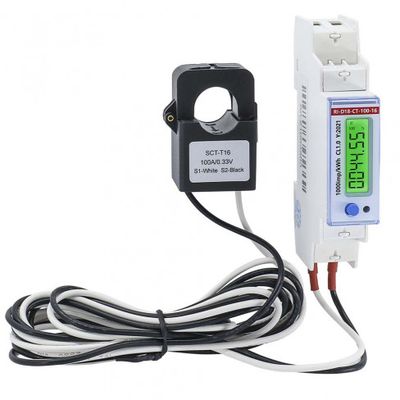

Features: Single module DIN rail mounted, Energy pulse LED, Supplied with Mini split-core CT with 16mmØ aperture for easy retrofitting (Input 100A/330mV), Single phase network compatible, Import & Export energy measurement, Clear 6-digit backlit LCD display with 1 or 2 decimal places, True RMS measurement, Cost-effective and accurate, Simple operation, Modbus communication plus 2 x Pulse outputs, Non-volatile memory
Details
The RI-D18-100-CT is a DIN rail single-phase energy meter.
Suitable for monitoring energy consumption and many other electrical parameters in industrial and commercial applications. These meters may be used in single-phase systems.
A high-efficiency backlit LCD display provides a clear indication of the measured value in all light conditions. The push-button on the front of the meter allows the user access to the display page required.
The meter is available in ONE version:
- With RS485 Modbus communication and 2 x pulse outputs
The unit is housed in a compact single module width housing suitable for 35mm DIN rail mounting.
Displayed Parameters
- Total active energy (kWh)
- Import active energy (kWh)
- Export active energy (kWh)
- Voltage (V)
- Current (A)
- Active power (W)
- Frequency (Hz)
- Power (PF)
- Modbus ID
- Baud rate
- Parity
