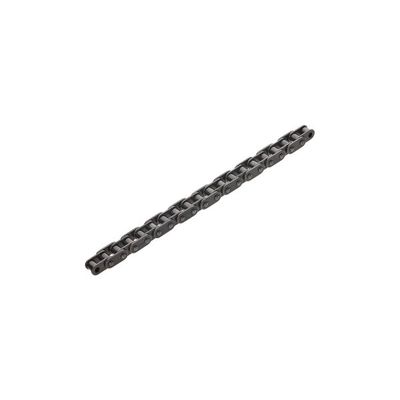

Nitro - Model RC06B-1R-10FT - Metric Roller Chain - 10ft Roll
From Metric Roller Chain - Single Metric Roller Chain
06B roller chain is a metric size that is manufactured to ISO606, BS228, DIN 8187 standards. Our 06B metric roller chain uses high quality carbon steel components that are heat treated and shot peened for increased durability.06B metric chain uses straight side plates instead of the 'figure 8' style.
-
Most popular related searches
06B Roller Chain Dimensions:
- Pitch (P): 9.525mm (3/8')
- Inner Width (b1):5.72mm (0.225')
- Roller Diameter (d1):6.35mm(0.250')
- Overall Width: (L):13.15mm (0.531')
- Pin Diameter (d2):3.28mm (0.130')
- Link Plate Height (h2):8.20mm (0.335')
- Link Plate Thickness (T):1.30mm (0.050')
- Average Tensile Strength:2,300 lbs
- Max Working Load:395 lbs
- No. Of Links Per 10 Feet:320
- No. Of Connecting Links Included:1
Features:
- Manufactured To ISO 606, BS 228 & DIN 8187 Standards
- Manufactured From Quality Raw Materials
- Solid Rollers
- Heat Treated
- Shot Peened
- Pre-Loaded (Pre-Streched)
- Pre-Lubricated In Hot Oil Bath
