Oxygen Gas Plant

Oxygen Gas Plant

0

The SANGHI-ORG Oxygen Plant, is safe and economical to operate. It comes with an efficient expansion engine, which lowers the operating pressures remarkably to as low as 32-35 kg/cm2 and also cuts down power consumption. A Molecular sieve Battery drier unit for separation of moisture and carbon dioxide is another money-saving device in the SANGHI-ORG plant. It removes acetylene and other hydro-carbons from the process air, thus eliminating the need for separate acetylene absorbers, and moreover it eliminates recurring caustic soda costs. The SANGHI-ORG Oxygen Plant is capable of simultaneously producing high purity Oxygen Gas and Nitrogen Gas. It also has an internal compression Liquid Oxygen Pump to fill dry gaseous oxygen in cylinders. We also undertake supervision of Installation and Commissioning of the SANGHI-ORG Oxygen Plant.

Plant Specifications

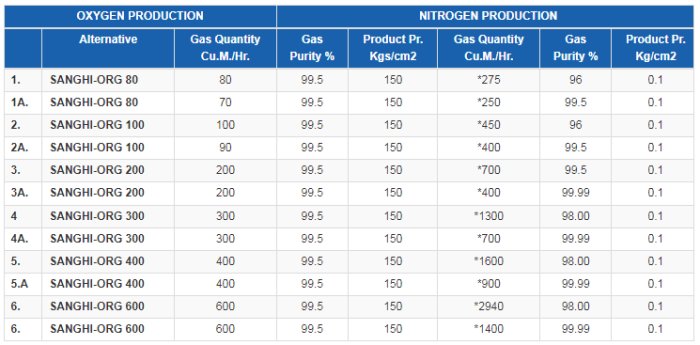

1. Production Capacity - The plant is very versatile and can be set for a cycle to produce any one of the following alternatives:-

More about Oxygen Gas Plant


The above product capacities are based on ambient ...

The above product capacities are based on ambient conditions of 15oC temperature 760mm of Hg pressure and 50% relative humidity and 0.03% of Carbon Di-oxide is allowed as impurity.

Note:
1) High purity Nitrogen of upto 2 PPM can also be tapped simultaneously with a separate liquid Nitrogen pump in modified plants , at an additional cost.
2) Provisions can also be made for tapping upto 25% liquid oxygen / liquid nitrogen simultaneously with gaseous oxygen, at an additional cost.

2. Other Specifications:


Note:

Note:
1) Electric motors can be supplied to suit specific power ratings in respective countries across the globe, if informed in advance.

Note:
1) High purity Nitrogen of upto 2 PPM can also be tapped simultaneously with a separate liquid Nitrogen pump in modified plants , at an additional cost.
2) Specifications of other capacity plants upto 750 Cu.m/hr capacity can be furnished on request. 2) Provisions can also be made for tapping upto 25% liquid oxygen / liquid nitrogen simultaneously with gaseous oxygen, at an additional cost.
