PCE - Model SPM 1 - Solar Radiation Meter
The PCE-SPM 1 solar radiation meter is the optimal device for solar engineers, architects and those working in the field of solar engineering. This solar radiation meter will measure solar power. Parameters such as current and voltage can also be measured with an optional multimeter with data logger, device. This allows the user to take measurements over extended periods of time to determine the compilation and layout of a photovoltaic system. Light intensity is measured using a silicon crystal. The integrated processor in the solar radiation meter is responsible to make automatic corrections to ensure accuracy after calibrating each device in the solar simulator.
The most important parameter is Ptot (in W/m²...
The most important parameter is Ptot (in W/m²) and can be seen clearly on the display. Data saved in the internal memory (32,000 readings) can be transferred to a computer by way of software and cable connection. This solar radiation meter has been developed for the use outside and is made of a durable enclosure that is weather resistant. Its compact design makes it an ergonomic device. This link provides an overview where you will find a radiation detector that best suit your needs.
- Measurements of solar energy can be taken in situ , power output/ insolation: Ptot
- Measurements can be taken over periods of time thanks to the internal memory for up to 32,000 readings
- Software to analyse and transferring data comes included
- Possibility to make a comparative solar measurement
- Minimum, maximum and data hold functions
- Powered by 4 lithium-ion batteries for approx. 16 days of continuous use
Examples of use
1. Solar measurement in situ

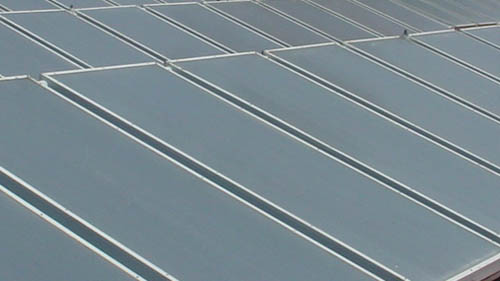

With the rdiation meter, a measurement can be taken of the energy in a specific location. These readings can be used to verify the operating ratio of modules or photovoltaic installations.
2. Simulation of temperature, power, voltage and current of photovoltaic modules.
Note: a multimeter that we have available.
3. Prolonged measurements
The device is equipped with an internal data logger to take measurements over extended periods of time.
Solar radiation
Solar radiation

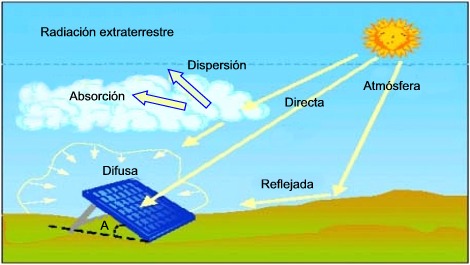

The radiation meter recognizes complete solar radiation; the direct radiation as well as diffused solar radiation in the atmosphere. The biggest amount of the solar radiation that is reflected by the sun is in the visible infrared spectrum , as ultraviolet radiation is absorbed by the atmosphere. Solar radiation can last up to a year, as the angle of reflection is greater in the summer than it is in the winter and the rays fall more directly on the surface of the earth.
Technical Specifications
Measurement range: 0 to 2,000 W/m²
Resolution: 1 W/m2
Accuracy: ±10 W/m² or ±5% (highest value is correct)
Spectral range: 400 to 1,100nm
Memory: 32,000 readings
Measurement quota: adjustable
Data transmission: RS-232 port
Display: LCD
Operating conditions: 0 to 50ºC; <80% r.h.
Power: 4 Lithium-ion batteries
(approx. 16 days of continuous use)
Dimensions: 111 x 64 x 34mm
Weight: 165g
Contents
Contents

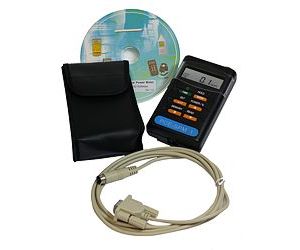

PCE-SPM 1 solar radiation meter, internal sensor, RS-232 cable, software, 4 batteries, carrying case and user's manual
