SDT Vigilant - Turn-Key Condition Monitoring System
From Permanent Monitoring
A turn-key condition monitoring solution combining the versatility of ultrasound, the analytics of vibration, standard communication protocols and an embedded trending and analysis software.
-
Most popular related searches
Configure Vigilant to any Critical Asset
4 channels for Temperature, Tach and Pressure create an all-in-one solution for critical and guarded assets.
Designed for CONMONSense
Vigilant accepts data from commonly available sensors including the CONMONSense Sensors from SDT, designed to provide repeatability in any industrial environment.

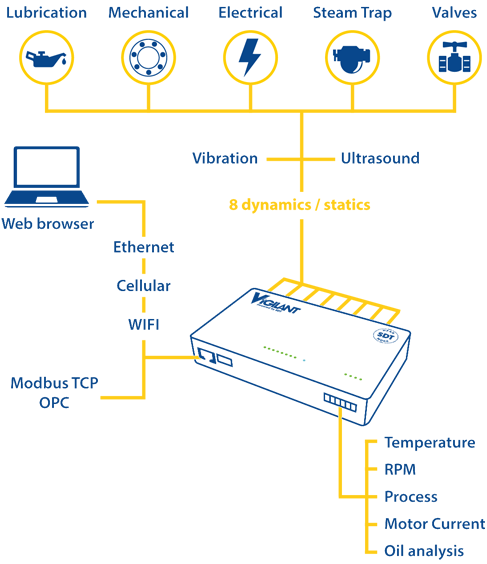

Vigilant Highlights
- 8 channels (Ultrasound or Vibration)
- 4 channels (Temp/Tach/Process)
- Embedded data management software
- Trends/Spectrum/Waveform/Waterfall
- Open communications protocol
- Static and Dynamic data
Embedded Data Management Software
View the status of any asset from the security and convenience of your favorite web browser.
Configuration
Vigilant includes a web interface to configure all the system options and monitoring features available on the units.
Alarm Log
From any of the desktops the users have access to the “Alarm Log” that shows all the events or anomalies detected in the monitored machine in real-time.
Widgets
Widgets for static trends, dynamic time waveform plots, as well as spectral analysis.
Layouts
Size, position, and arrange widgets to create custom desktop layouts.
Dashboard
The Dashboard visualizes the real time measurements performed by the Vigilant. It also shows the historical data stored in the unit.
Applications
- Early detection of rolling elementbearing faults(especially in slow speed applications);
- Status of couplings on critical assets inlimited access locations;
- Monitorguarded assetssuch as robotics or CNC machine centres;
- Lubrication status of roller bearings;
- Valvesdeemed critical to a process;
- Detection ofpartial dischargein electrical assets such as MCC panels and switchgear cabinets;
- Detection offrictionorimpactingin linear motion applications;
- Detection of turbulence produced bycavitation in pumps and valves;
- Detection ofhydro-cyclonesused in mining processes.
Vigilant Permanent
- 8 high-speed (Dynamic) multipurpose analog inputs;
- 4 channels (Temp/Tach/Process);
- ICP power source available on all dynamic inputs;
- Ethernet TCP/IP communications;
- Powered at +24 Vdc.
Vigilant Mobility
- Same function as Vigilant Permanent;
- Packaged in rugged, custom waterproof case;
- Designed to travel to off-site assets;
- Install on assets in alarm to closely monitor until planned shutdown.
