Short Wave Infrared Lamps
From Infrared Lamps

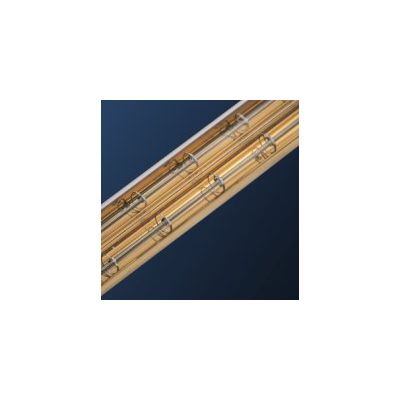

Short-wave Infrared lamps have their emission peak in a range between 0.78 µm up to 1.4 µm and can be produced in different shapes up to a length of 2,000 mm. Three different sizes of twin- and single-tube lamps are available. On customer request, we are able to offer the lamps with a reflector made of lustre gold. Short-wave Infrared lamps penetrate deep into the material such as to warm it up from the inside. Their main advantage is their fast reaction which warms the material directly and thus, energy saving without deviation over convection or thermal conduction. The main application fields are curing and drying processes.
-
Most popular related searches
Specifications
- colour temperature of the filament approx. 2,300 K up to 2,400 K
- power range of approx. 60 W/cm
- heated length 300 mm to 2,000 mm possible
- twin tubes available in the dimensions 17x8.5 / 22x11 / 32x15 mm
- standard shapes with single end or both end connection
- all lamps are developed and designed according to your needs and specifications
