SnapNrack - Model RL - Universal Mounting System

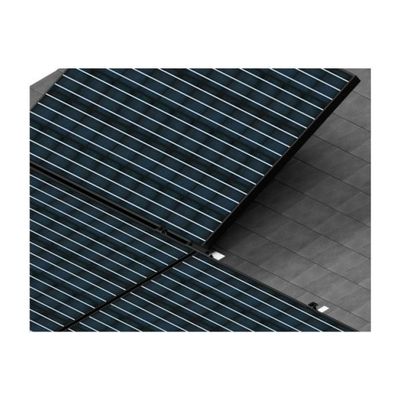

SnapNrack RL Universal Mounting System is designed to provide the fastest, most intuitive install experience on the roof. The direct mount system features four basic components, with nothing larger than the size of a PV module, resulting in easy material management. Features include an integrated Skirt for a secure installation with sleek aesthetics, Universal Mounts that fit module heights from 32 - 40 mm and Links that can accommodate 2 to 4 modules. Mount and Link interference or use of hybrid mounts are eliminated with the unrivaled 2 1/2' Mount offset and 5 1/4' Link adjustability. SnapNrack's RL-U System offers the highest spans of any current rail less system, with a labor saving installation process backed by the industry leader in residential solar.
-
Most popular related searches
Details
SnapNrack provides the industry best Wire Management Solutions and now provides these leading solutions to the rail less market with the RL-U System - featuring installer preferred products that outperform any Wire Management on the market. Smart Clips secure wires at any point along the module by tucking wires away within the module frames to avoid any unintended removal over time. Wire Savers provide the ability to secure loose wires post module install; perfect for last minute wire management. The portfolio is completed with a track mounted L Foot and Junction Box solution set to fulfill all wire management needs.
RL Universal Roof Mount System
- The RL Universal Skirt creates strong structure for leveling and alignment of first row of modules.
- A single Umbrella Lag screw secures ?ashing and Flash Track to roof in one step.
- The Flash Track provides 6 inches of North-South adjustability for all Mounts and serves as a platform for wire management and bonding accessories.
- Module Links accommodate 2 to 4 modules while providing row-to-row bonding, and feature 5 1/4″ of adjustability to avoid interferences.
- Mounts accommodate PV-modules from 32-40mm, simplifying material logistics in the warehouse and on the roof
- SnapNrack RL-U Mounts feature an exclusive 2 1/2″ offset which combines with the Link adjustability to create a system that eliminates use of specialty mounts or disassembly on the roof.
Technical Features
- 6000 Series Aluminum
- Stainless steel
- Galvanized Steel and Aluminum Flashing
- Silver or black hardware
- 110 – 180 mph (ASCE 7-10)
- 0 – 90 psf
- 0 – 90 degrees
- 25 year Limited Product Warranty
