Solar Household Lighting System
From Iclear Lighting
Make the battery fully charged before use is for the first time, when the indicator light is always being on, it shows the charging is complete. Battery capacity indicated by the indicator light, when indicator light twinkle 2 times in 2 seconds, that shows the battery is almost over discharged, at this situation, it can light up two bulbs last 2-3 hours. When the indicator light twinkle 3 times in 2 second, that show the battery is already fully discharged, the system output is cutoff, stop providing lighting and mobile phone charged.
Product Details
Provide lighting
On/off power switch (protection battery, reduce loss wen closed), when opened, charging, USB can work. Tact switch is opened with LED lamp can work he plug is inserted LED indicating exhibit of lanterns lit.

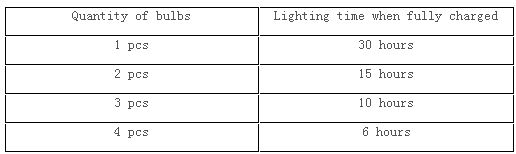

The system allocates high capacity battery, lighting time when fully charged please see the chart as below.
The system allocates high light bulbs with 90 lm a...
The system allocates high light bulbs with 90 lm above, amount to the luminance of 25W filament lamp.
System charged
Charge the system using solar panel, can get through the below steps:
- Place the solar panel towards to the sun where can receive the strongest possible sunlight.
- Plug the panel cable into the socket witch marked, when indicator light twinkle 1 time in 2 seconds, that means charging normally.
In order to get higher charge efficiency, may use the below methods:
- Place the solar panel towards to the sun, avoid covering by shadow.
- Wipe the panel surface using the wet cloth regularly, avoid resisting the sunlight by dust or blot.
- Place the system to were shady and cool when charging, so that can increase the charge efficiency.
- Mobile phone charge
Allocate a connecting line with 10 kinds of connector, can charge most of the mobile phone on market.
Operation steps:
- Plug the USB into the port which marked.
- Connect the mobile phone through the connector, then charge the mobile phone.
- The 10 connectors are: MOTO V3, V8; Nokia 8210, 6101; Sony Ericssono K750; Sumsung E760, D900; iPhone; PAP and LG KG800.
Specifications
- Solar panel: 3W9V
- Solar cable: 5m
- Battery: 6V4.5AH lead-acid
- Bulbs: 1.2W 110LM
- Color temperature of bulbs: 6000-7000K
- Bulb cable: 5m
- USB output: 5v 500ma
- IP grade of bulbs and panes: IP54
- IP grade of control box: IP20
Battery maintenance and use skill
The system uses a 6V 4.5Ah lead-acid Maintenance Free rechargeable battery.
In order to keep the longest lifespan
- Please don’t keep the battery in the over discharge status.
- Please charge the battery at less one time every 3 month, even you don’t use it.
When replace battery, only use 6V lead-acid battery, and under conduction by professional person.
