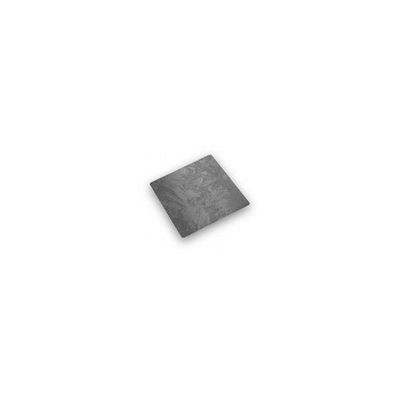

VacSol - Model DSS - Multi-Crystalline Silicon Wafer
From Silicon Wafer & Ingots - Silicon Wafer
Crystal Type: Multi-Crystalline (DSS). Width: 156±0.5mm. Diagonal Length: 218±1mm. Center Thickness: 200±20µm. TTV: ≤30µm. Type & Dopant: P/B. Oxygen Content: ≤1X1018atoms/cm3. Minority Carrier Life: >2µs. Resistivity: 1∼3, 3∼6 Ωcm. Warpage: ≤40µm. Carbon Content: ≤1X1017atoms/cm3.
-
Most popular related searches
Specifications
Surface Quality:
- no contamination
- no scratches, no notch, no corner breakage
- no crack, no hidden crack
- no edge breakage
- no obvious cutting mark
- no dent, no hole, no stress
- no twin crystals
Chamfer: 1X45°
Resistivity Variation: RVR<25%
Perpendicularity: 90±0.5°
