Wind Alarm Controller

To operate the wind alarm controller, set the thumb-wheel switches to your desired levels. When wind speed achieves or exceeds the first wind speed alarm control setting for 3 seconds, a yellow warning light illuminates and one internal SPDT relay activates. When the wind speed achieves or exceeds the second wind speed alarm control setting for 3 seconds, a red light illuminates, a 90dB piezo buzzer sounds, and the second internal SPDT relay is activated.

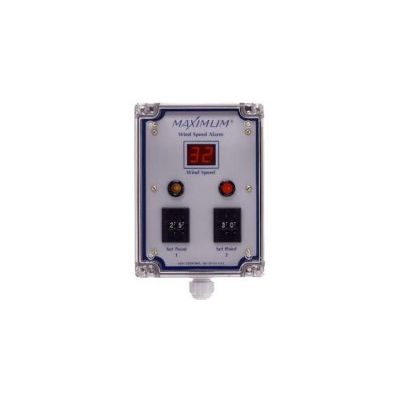

The Wind Alarm Controller is housed in a 6.3'H x 4.72'W x 3.29'D weathertight polycarbonate case and utilizes a non micro-processor circuit to minimize occurrence of latch-up. It is accurate to +/- 2 MPH and operates on 12 volts DC, with an AC adaptor available as an option.

• Rugged
• Dual set point alarms
• Dual warning lights
• Ideal for monitoring wind conditions for cranes, water fountains, and other wind sensitive applications

• Accuracy: + 2 MPH
• LED Window: 2 digits, 1x1 inch window
• Cup Type: 3 cup generator type
• Cable: 22 AWG, 2-conductor, Non-PVC jacketed, 60ft included
• NOTE: Sensor will operate on up to 500ft of 22 AWG wire.
• Input Voltage: 12VDC, AC adaptor available as an option
• Alarm Output: 2 SPDT Outputs, Yellow LED, 90dB Piezo Buzzer, Red LED
• Dimensions: 6.3x4.72x3.29 inch (16x12x8.4 cm)
• Weight: 4.3lbs (2kg)
