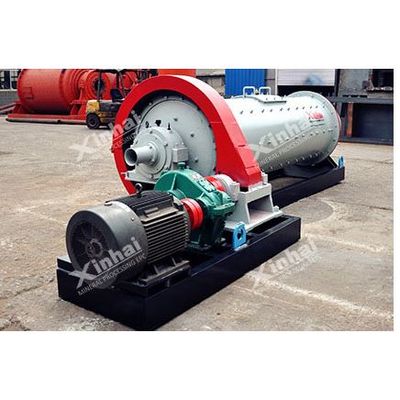

- Model MQGg - Energy Saving Ball Mill

From

Introduction: Energy-saving ball mill is a high efficient and energy saving ball mill with rolling bearing. Capacity : Up to 160t/h.  Improvement: Cylindrical energy saving grid ball mill is lined grooved ring plate which increases the contact surface of ball and ore and strengthens the grinding.

Advantages

  1. Large double row self-aligning roller bearing with low friction force is used in the energy-saving ball mill to replace sliding bearing, which is easy to start and saves 20-30% energy.
  2. Cylindrical energy saving grid ball mill is lined grooved ring plate which increases the contact surface of ball and ore and strengthens the grinding.
  3. Large ore outlet and large capacity;
  4. Energy-saving ball mill with diameter below 2.1 meters adopts whole machine frame, which is convenient for civil construction and equipment installation;
  5. Oil mist lubrication device guarantees the lubrication of all gears.

Product Structure

Cylindrical energy saving grid ball mill design consists of feeding part, discharging part, rotary part, transmission part (reducer, small gear, motors, electrical control) and other major parts. The hollow shaft is steel castings, and the liner is detachable. Rotary gear is processed by casting hobbing. The cylinder of energy-saving ball mill is lined with wear-resistant liner plate with good resistance to wear. Therefore, the energy-saving ball mill machine works stably in the production.
